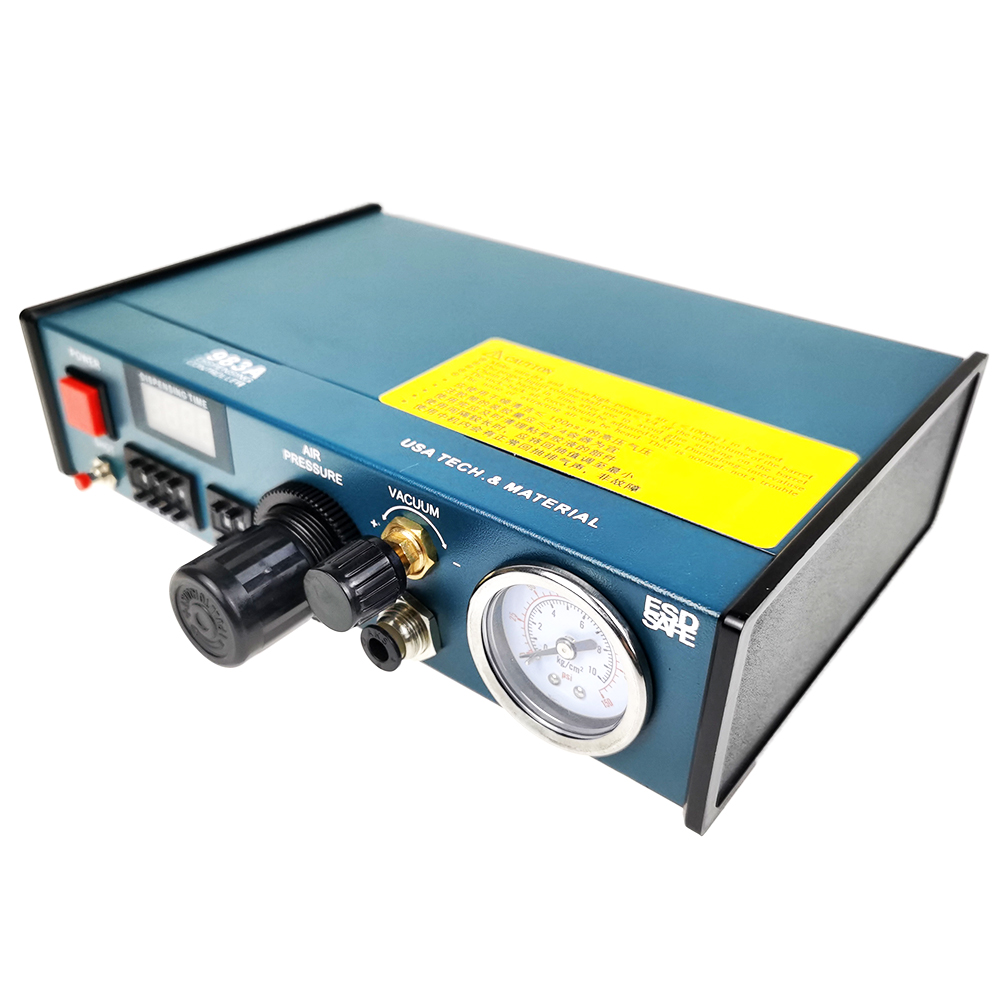

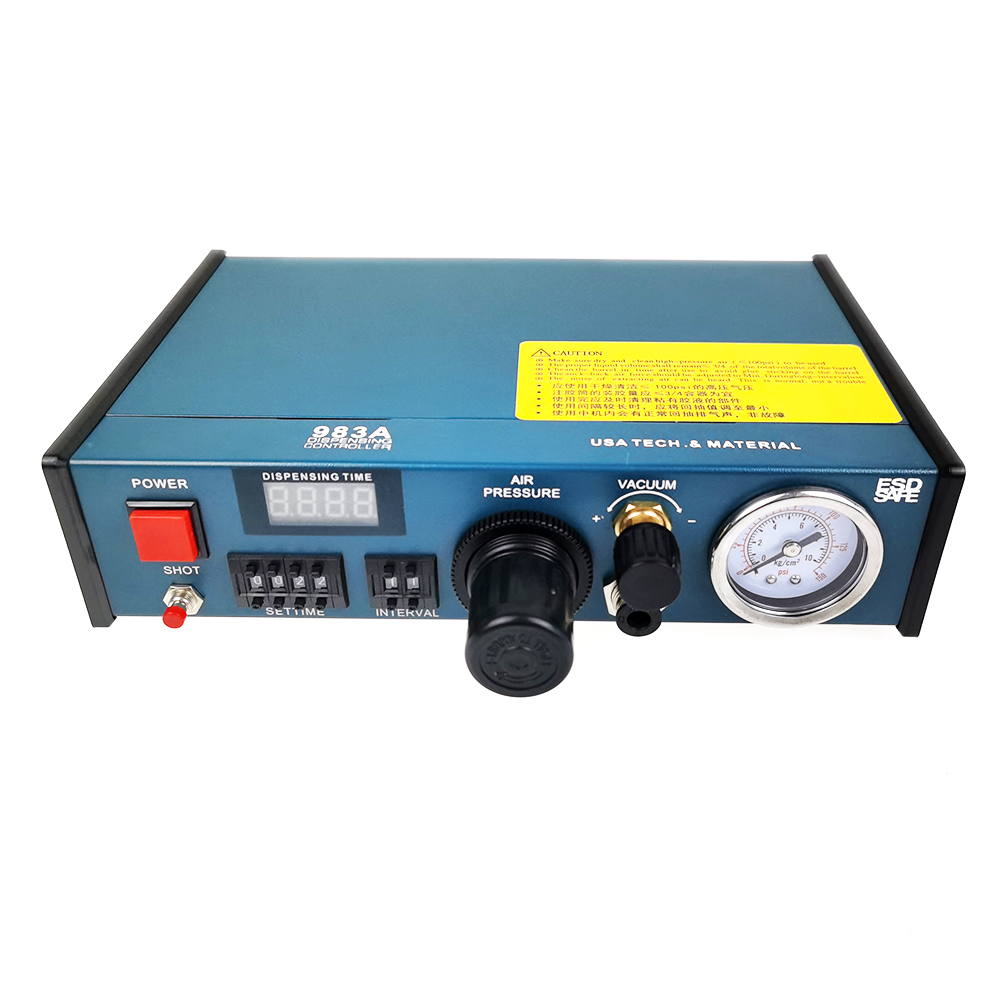

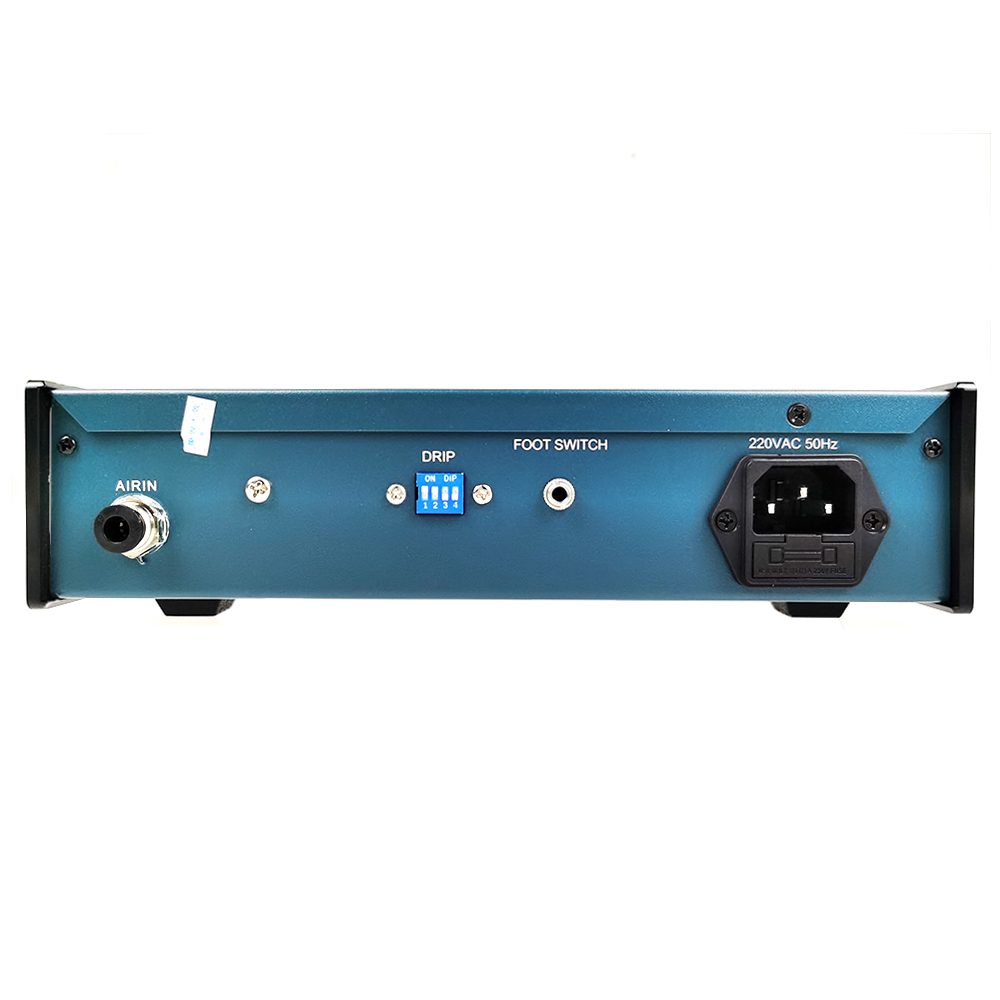

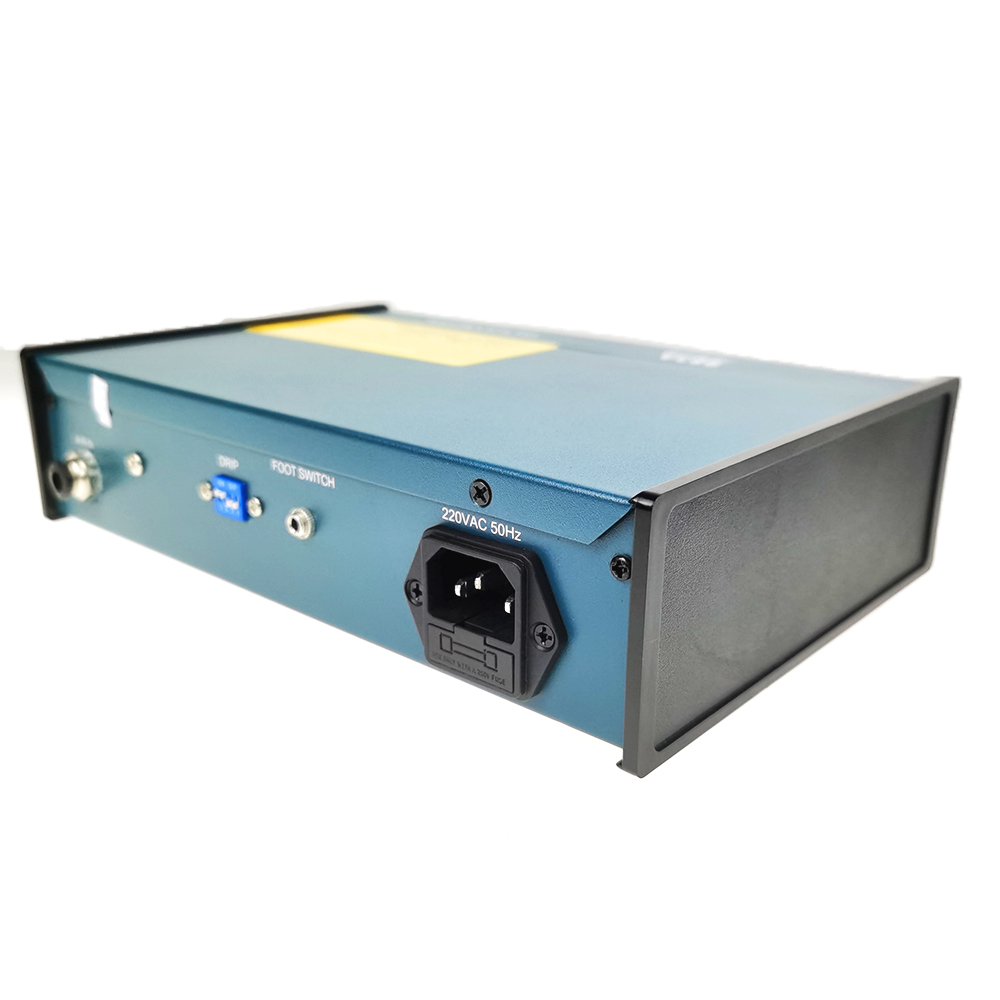

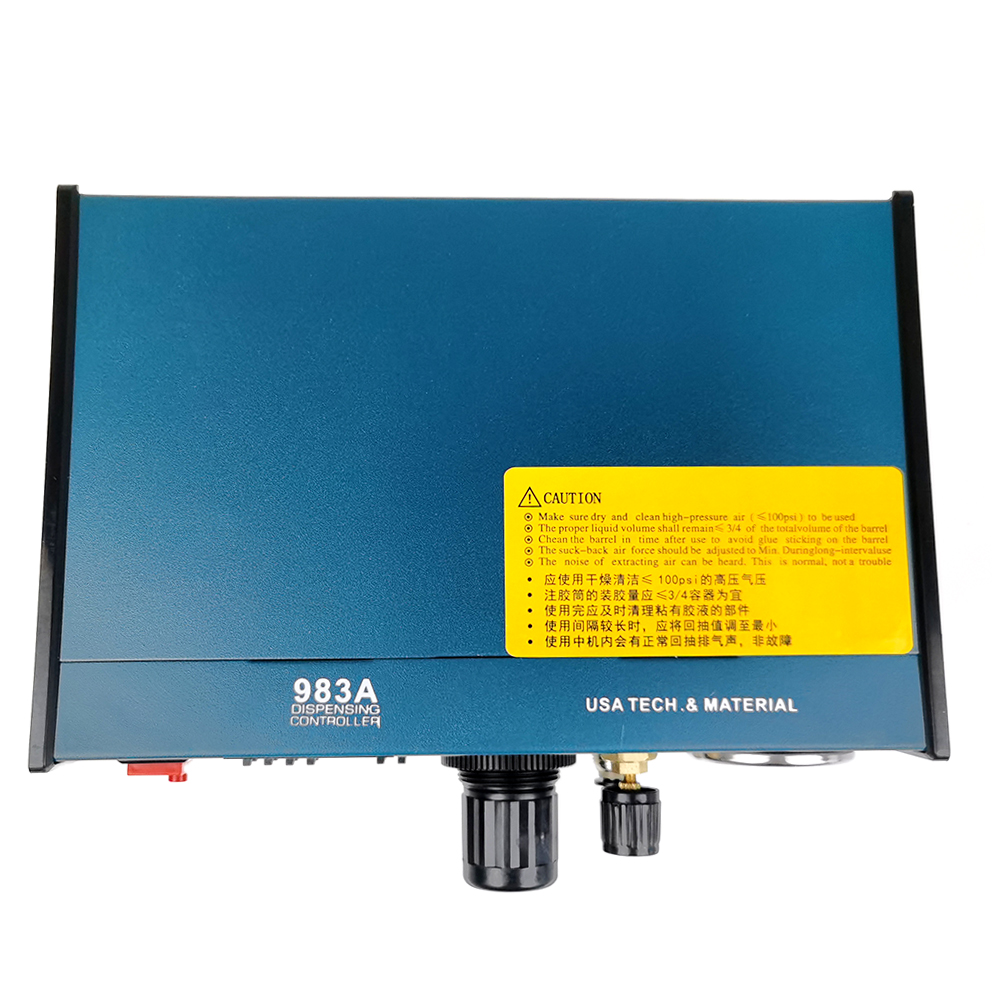

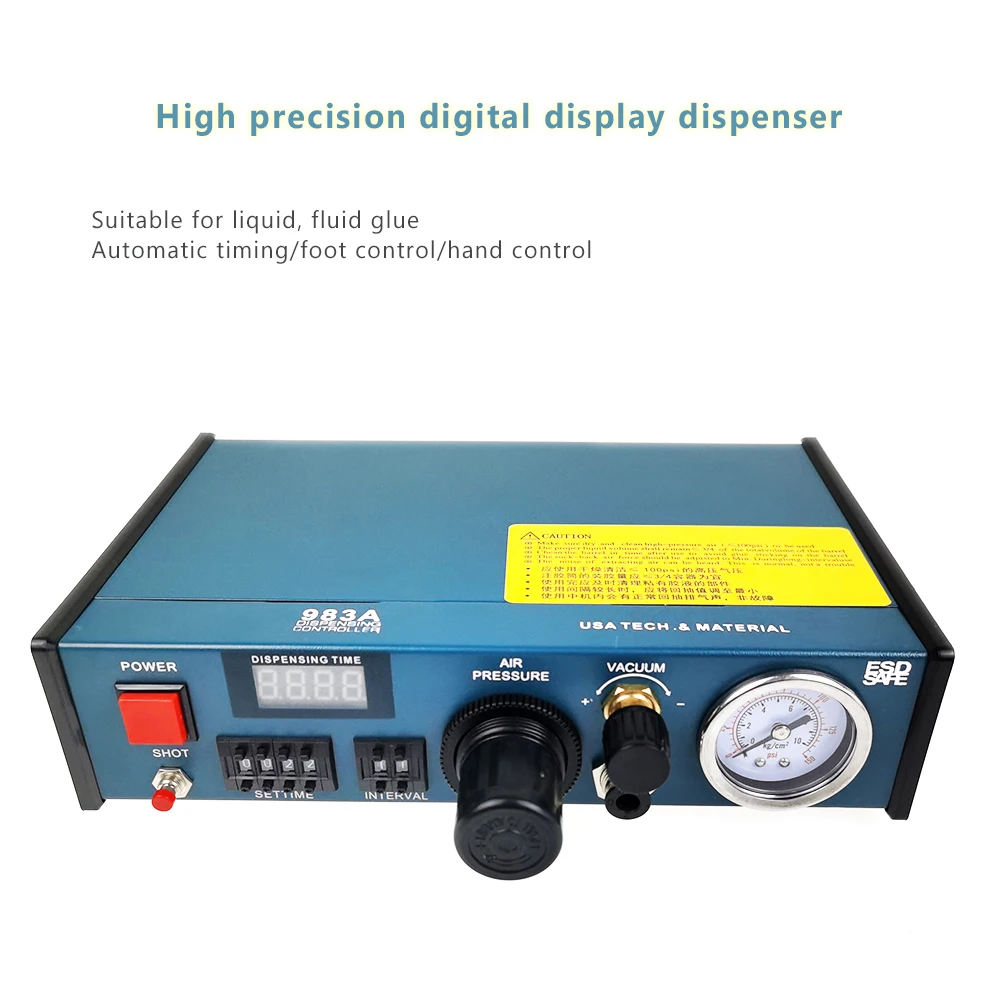

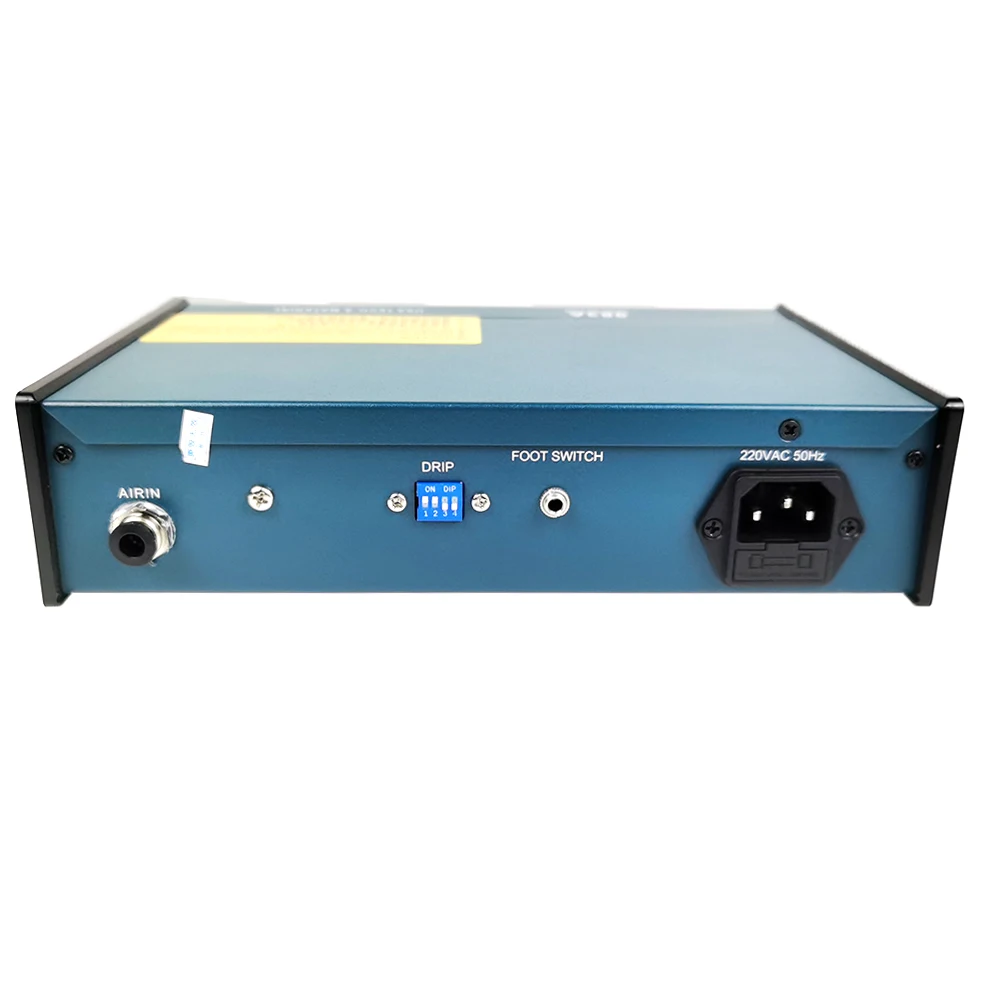

NEWEST Glue Dispenser machine Solder Paste Liquid Semi Automatic Dispensing Machine Controlling 983A

Note: we have other model ,if you need ,welcome to visit our store.

Product Description:

Name: Glue Dispenser

Brand: Dongmao

Model: 983A

Condition: Brand New From Factory

Timer: (Programmable) 0.01-1S, 0.1-10S, 0.2-20S and 0.3-30S

Manual Mode: Continuous / momentary

Repeat Tolerance: ±0.5%

Voltage Input: AC 220~240, 50Hz

Internal Voltage: 24V DC

Minimum Deposit: 0.01ml

Air Input: 2.5 to 7 bar (35 to 100psi)

Air Output: 0.1 to 5.5 bar (1 to 78psi)

Size: 23.8 * 15.5 * 6cm

Weight: 3KG

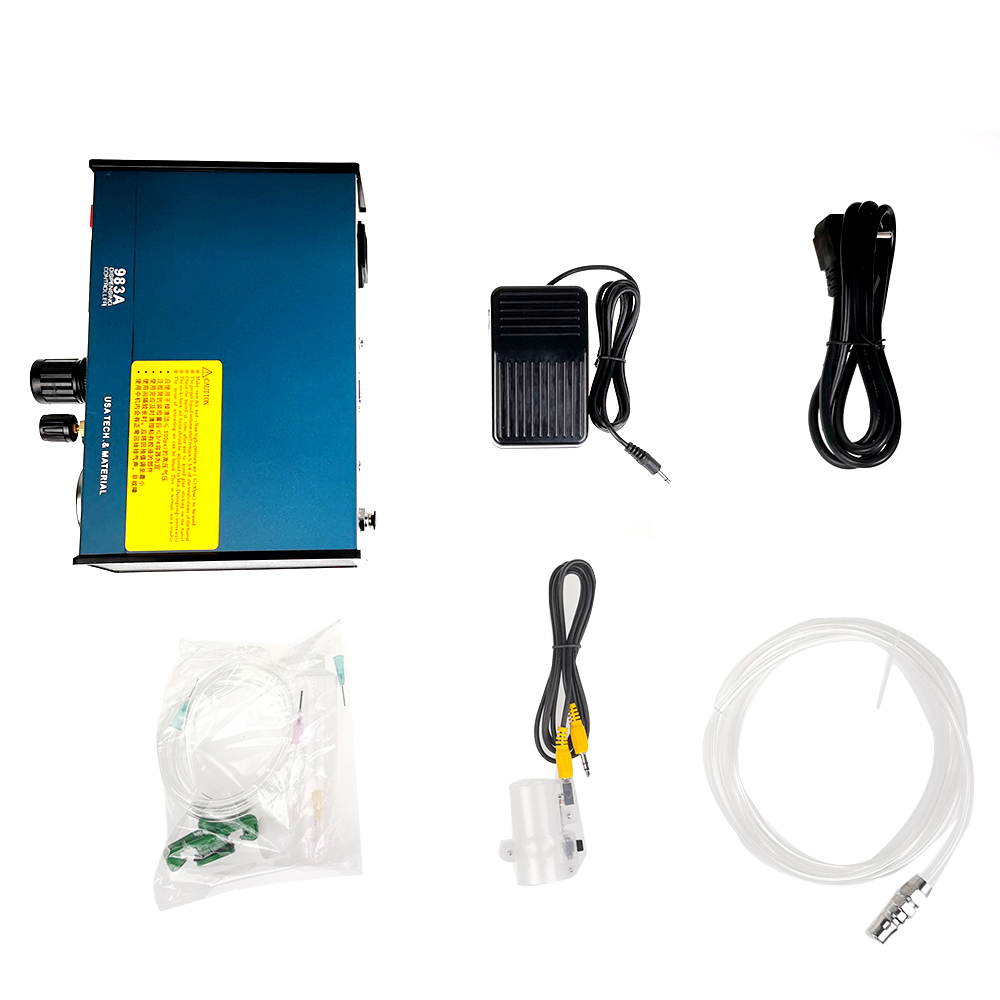

Package list:

1*983A

1*adapter

1*the needle cylinder 30cc

1*a number of types of needle

1*foot pedal

1*hand press switch

1*power line

1*trachea

1*iron rack

1*a number of full plastic needle

Manual or timer operation modes

Foot pedal controlled

Suck-back feature ensure no dripping

Designed for wide range of application as EFD, I&J Fisnar

Complete with an accessory dispensing kit

Timer mode dispensing time 0.01-99.99 seconds

Timer mode cycle time 0.1-9.9 seconds

Manual mode, materials could be dispensed continuously until operator release the foot pedal

This unit need to be connected to air compressor (1.5HP or above)
