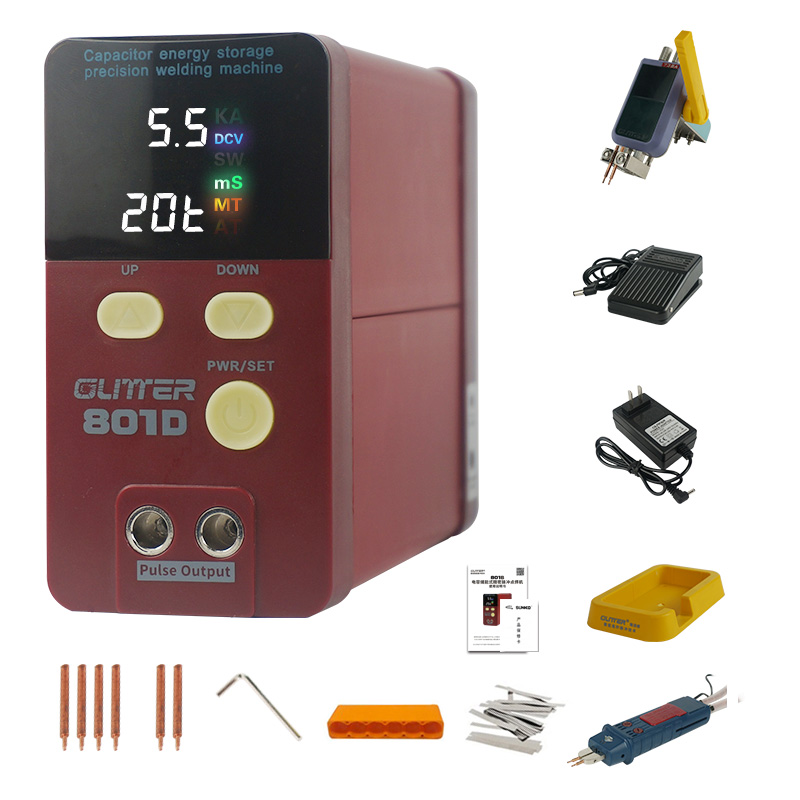

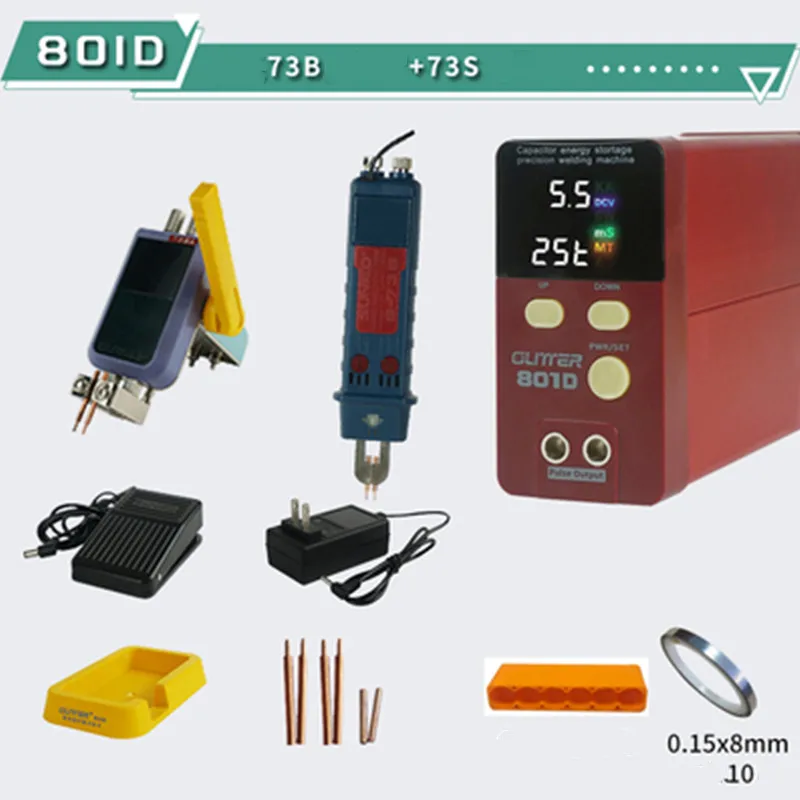

Package include:
Product parameters:
Brand model: GLITTER 801D
Power supply voltage: AC 100-240V 50 / 60Hz
Spot welding power: 9900W (peak)
Welding power: 0-99
Input Power: 9900W
Spot welding mode: fixed head welding / moving spot welding
Output voltage: 5.0-5.5V (peak)
Output current: 500-1800A (peak)
Size: 65 * 162 * 128.5mm
Charging time: 20 ~ 30 minutes
Welding 0.1-0.35mm nickel tablet spot welding
Touch version spot welding
Electrical parts welding
Stainless steel parts splicing
Metal iron welding
DIY board welding
Iron coating spots with nickel sheets
Nickel sheet and brass spot welding
Titanium and titanium spot weld
White copper spot welding

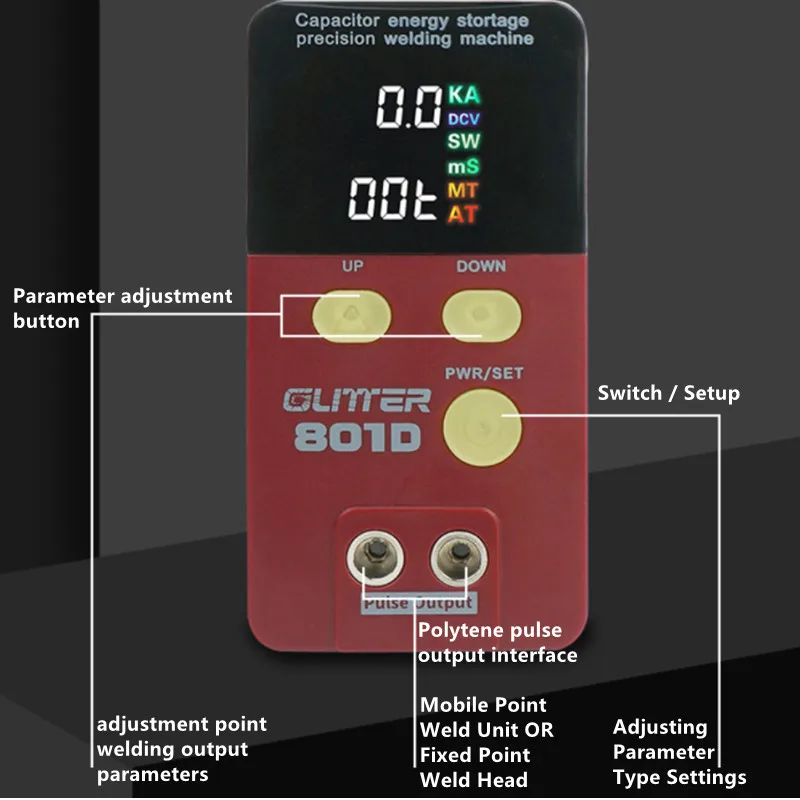

Feature operation introduction:

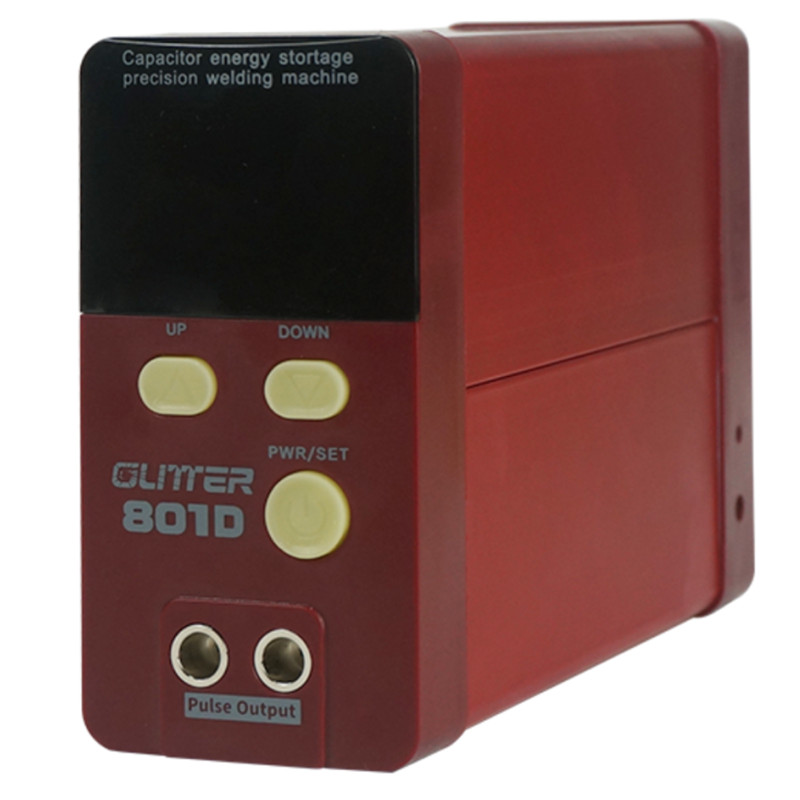

Parameter adjustment buttons: adjustment point welding output parameters
Pulse Output Interface: Mobile Point Weld Unit OR Fixed Point Weld Head
Switch / Setup Key: Adjusting Parameter Type Settings
The maximum output power reaches 9900W, output current 1800A

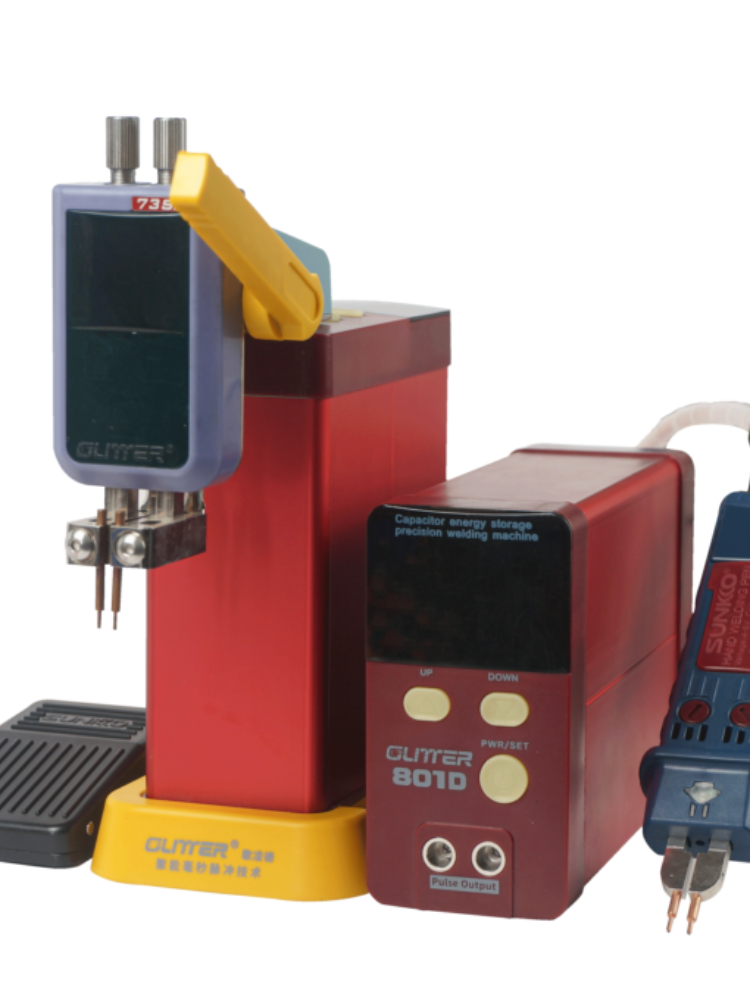

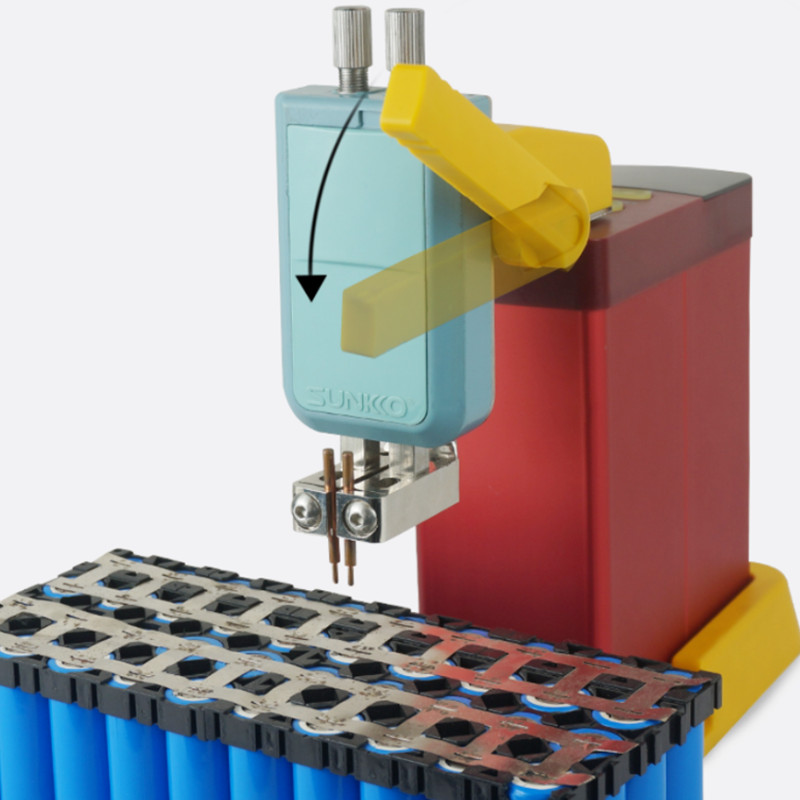

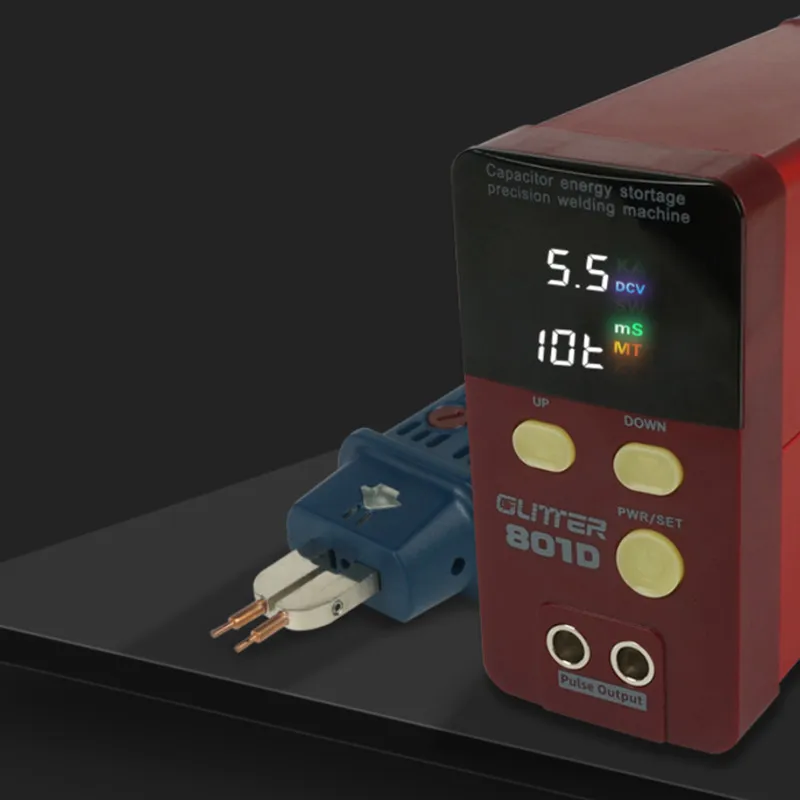

With fixed weld head spot welding:
support with 73S fixed spot welding head, easy under pressure point welding, prompt working efficiency

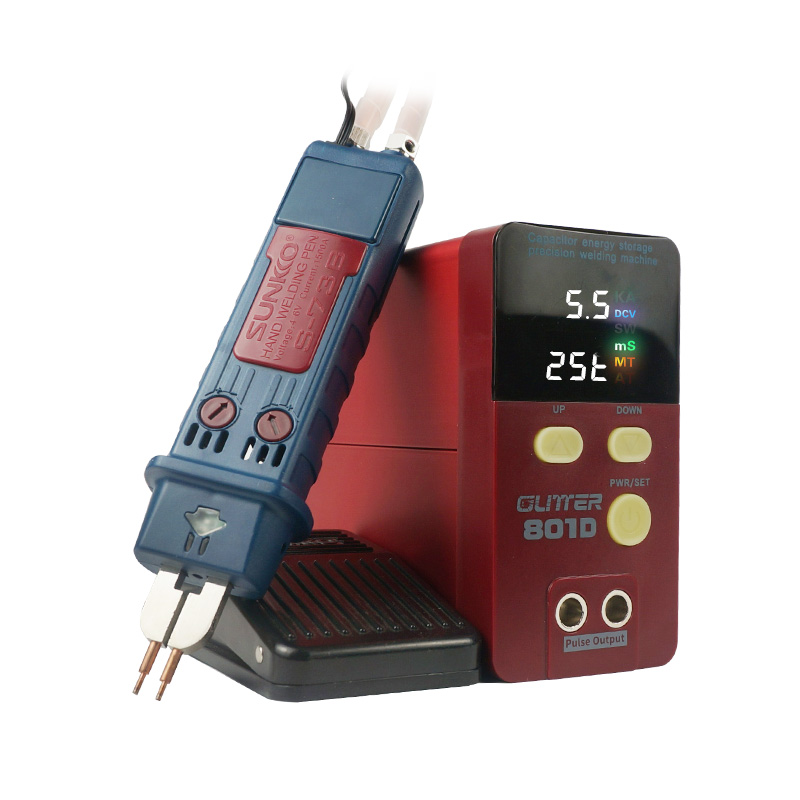

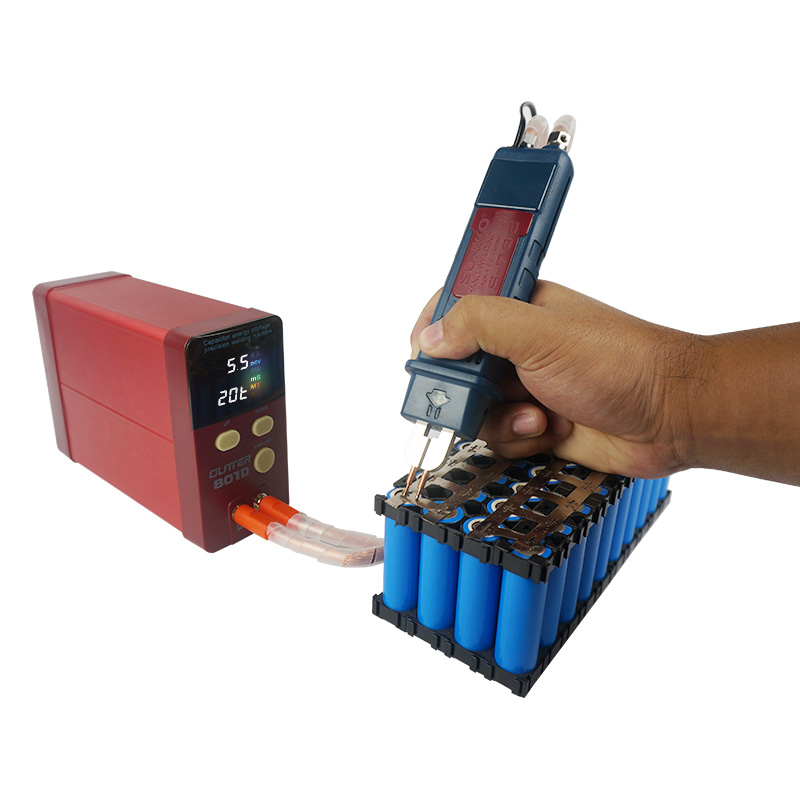

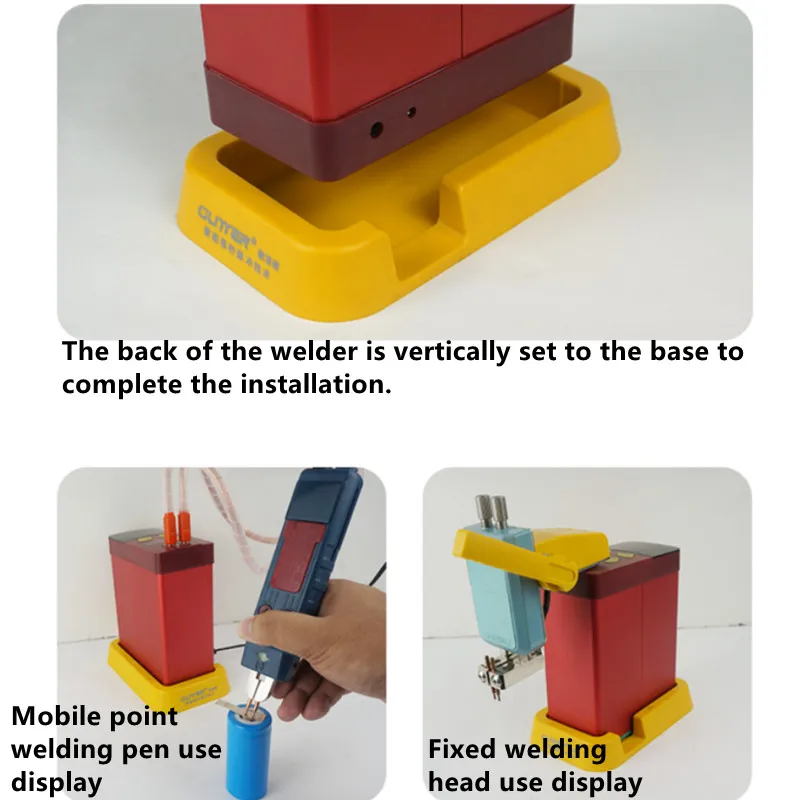

Mobile point welding pen use display / Fixed welding head use display
The back of the welder is vertically set to the base to complete the installation.

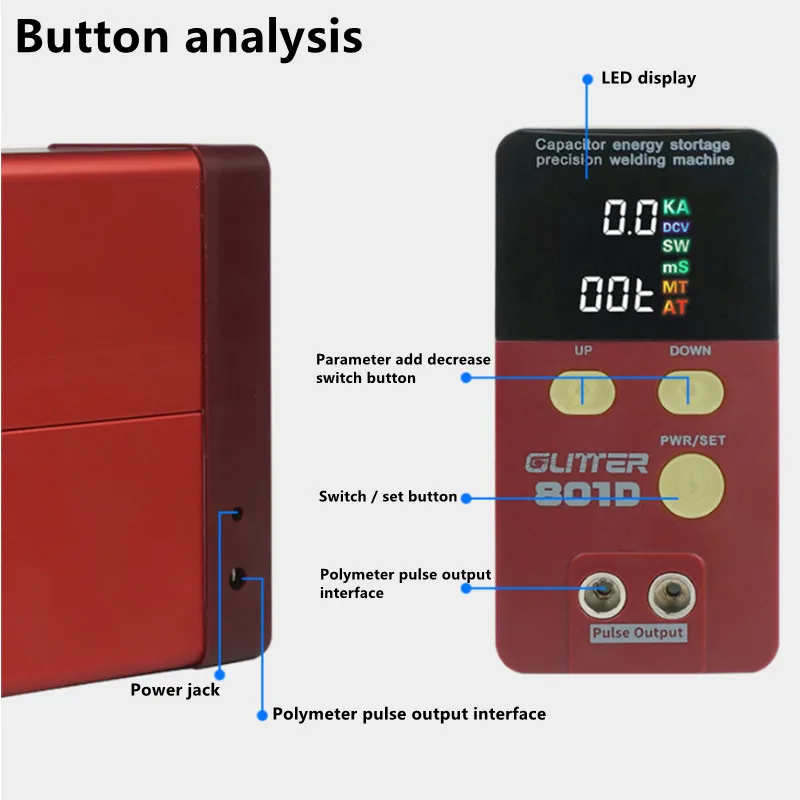

Button analysis:

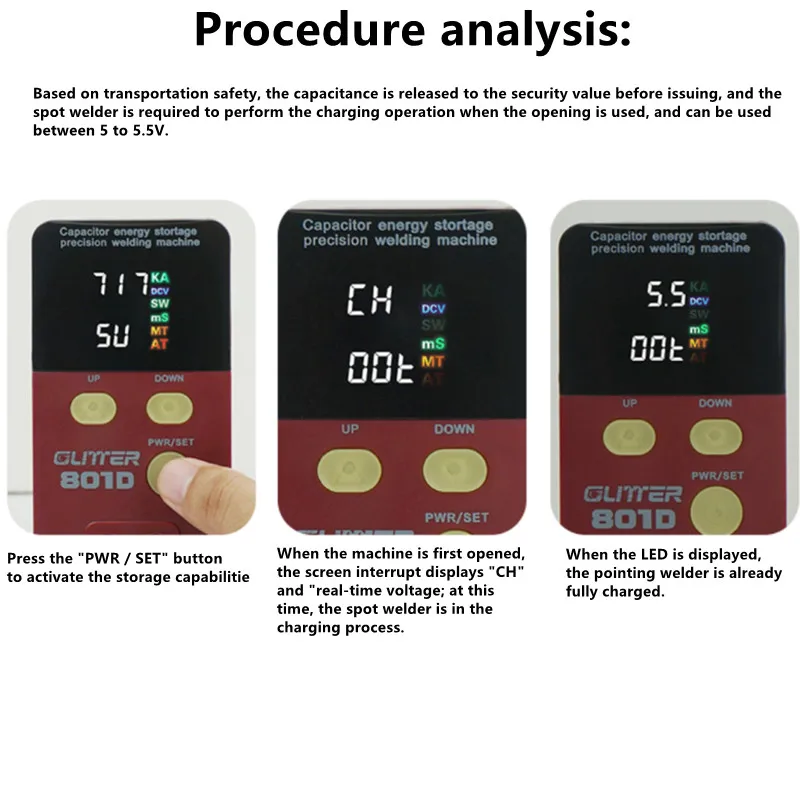

Procedure analysis:
Based on transportation safety, the capacitance is released to the security value before issuing, and the spot welder is required to perform the charging operation when the opening is used, and can be used between 5 ~5.5V.
Press the “PWR / SET” button to activate the storage capabilities
When the machine is first opened, the screen interrupt displays “CH” and “real-time voltage; at this time, the spot welder is in the charging process.
When the LED is displayed, the pointing welder is already fully charged.

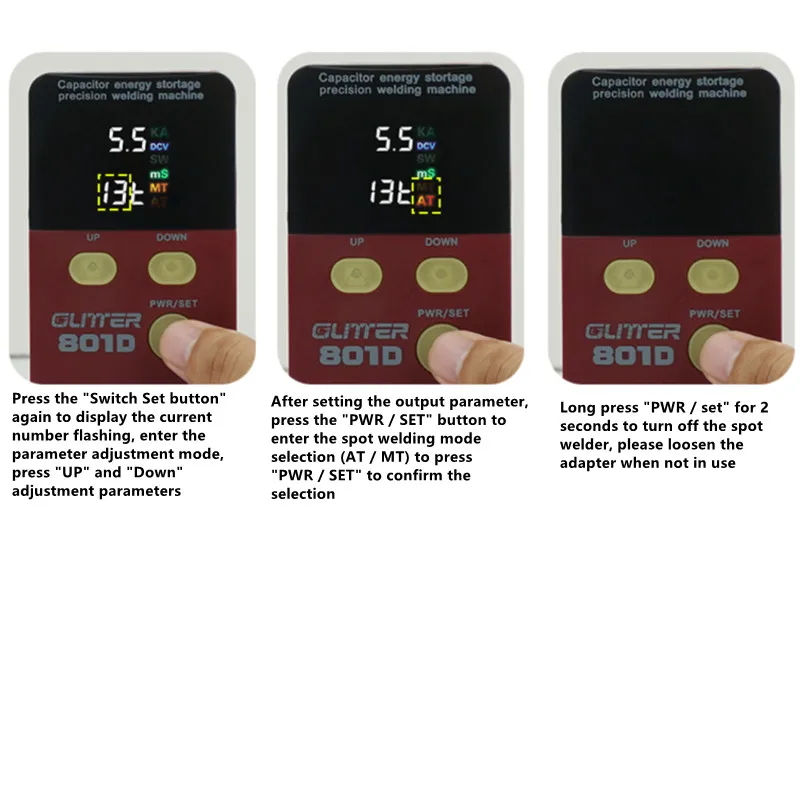

Press the “Switch Set button” again to display the current number flashing, enter the parameter adjustment mode, press “UP” and “Down” adjustment parameters

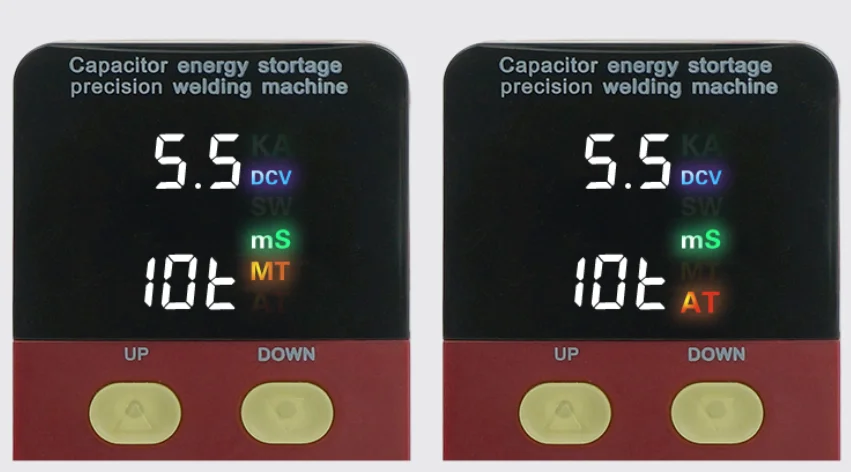

After setting the output parameter, press the “PWR / SET” button to enter the spot welding mode selection (AT / MT) to press “PWR / SET” to confirm the selection
Long press “PWR / set” for 2 seconds to turn off the spot welder, please loosen the adapter when not in use
