Parameters

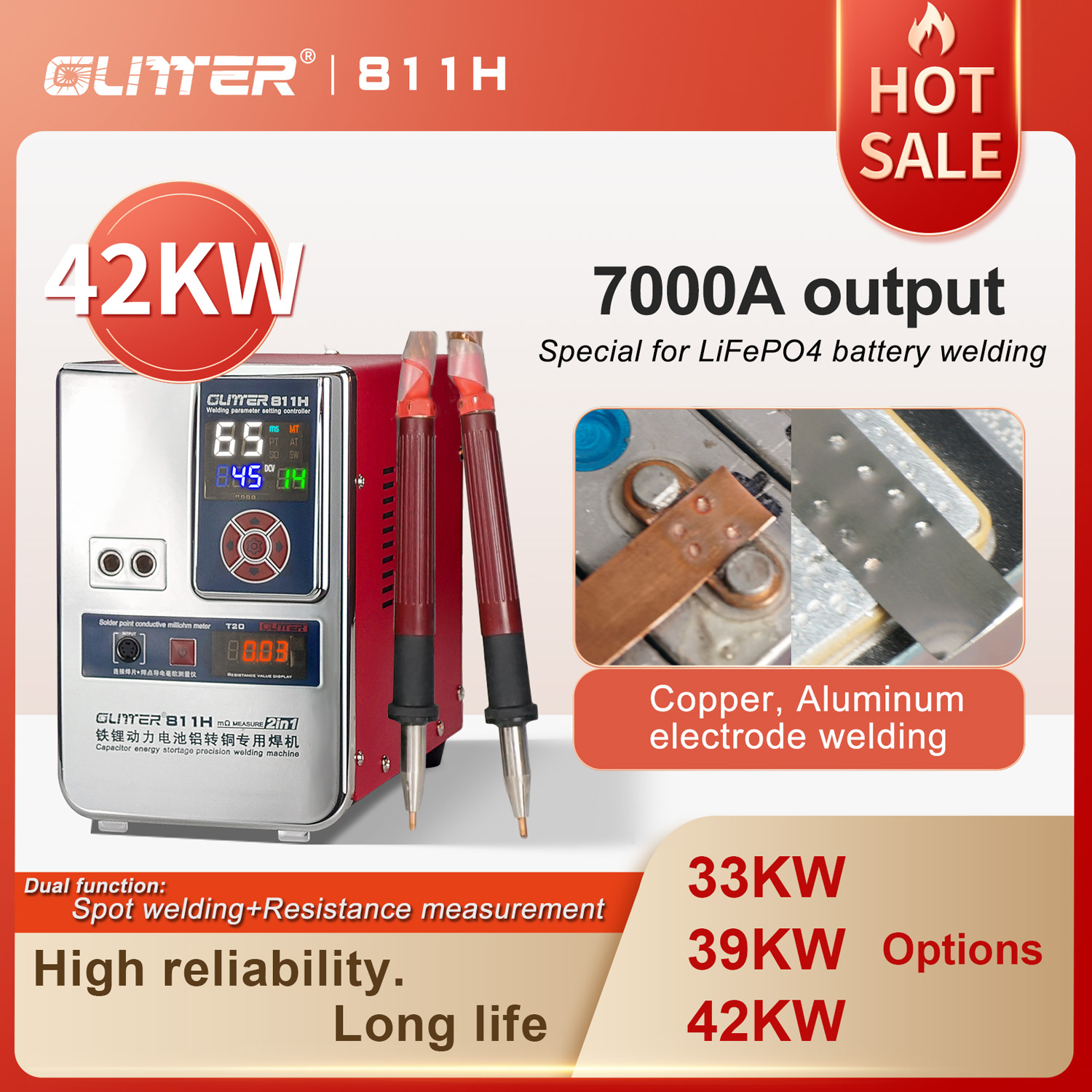

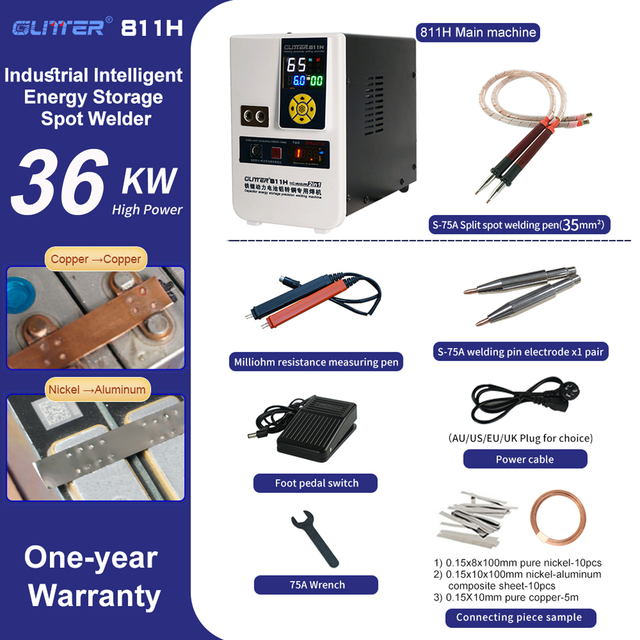

Model GLITTER 811H
Voltage Output 5.6~6V（Peak ）
Voltage InputAC 100-240V 50/60HZ
Peak Welding Energy720/840J

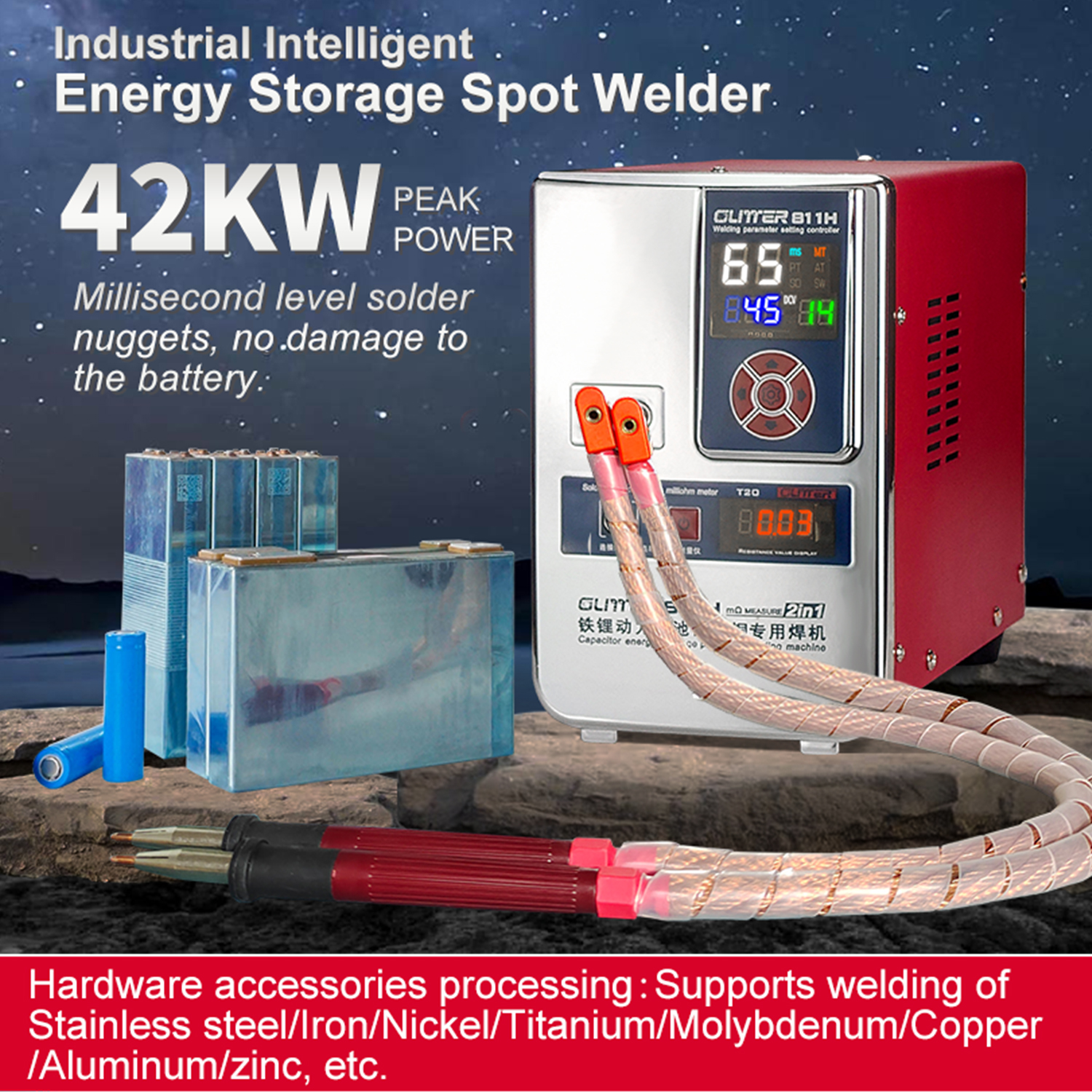

Pulse Power 36KW/42KW（Max.）
Trigger ModeAT/MT

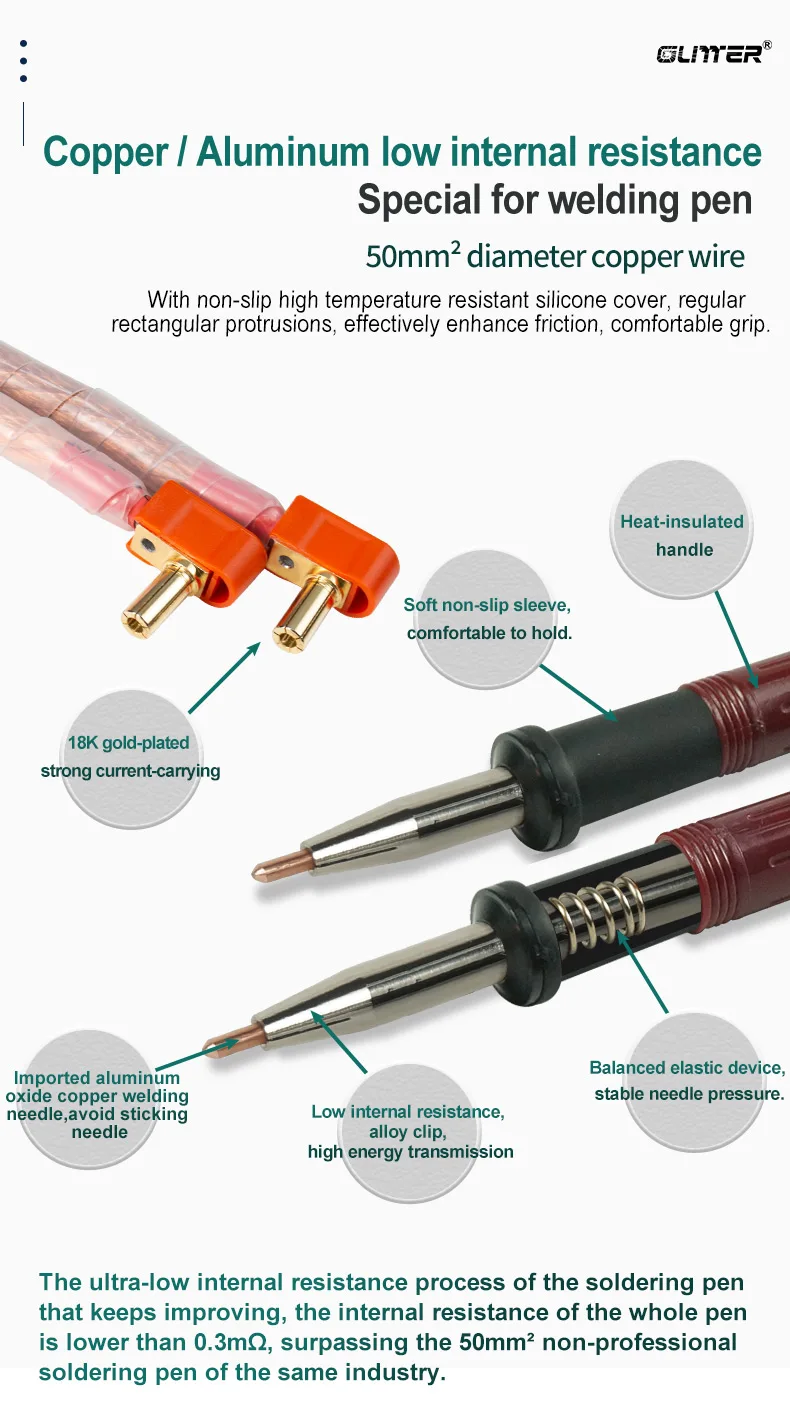

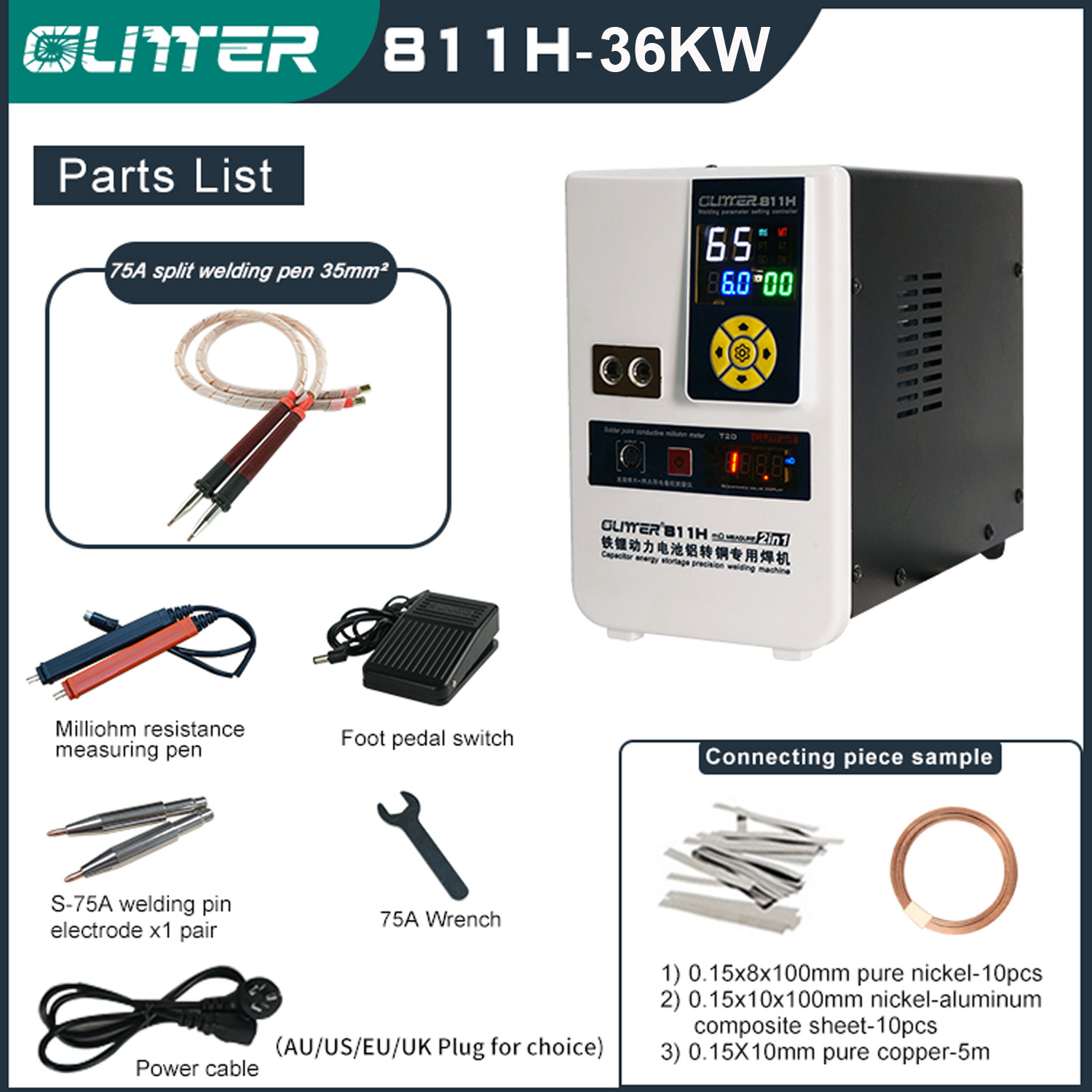

Welding Mode 75A split spot welding pen
AT mode–automatic welding(no foot pedal control, suitable for welding
a large number of batteries for a long time).
MT mode–control with foot pedal(Convenient for parameter adjustment
and welding debugging to achieve the best spot welding effect).
Energy Grade0-99T
Pluse Time0~20mS
Charging Current 10~20A（Peak）
Charging Time18(mins)
Applicable materials and thickness

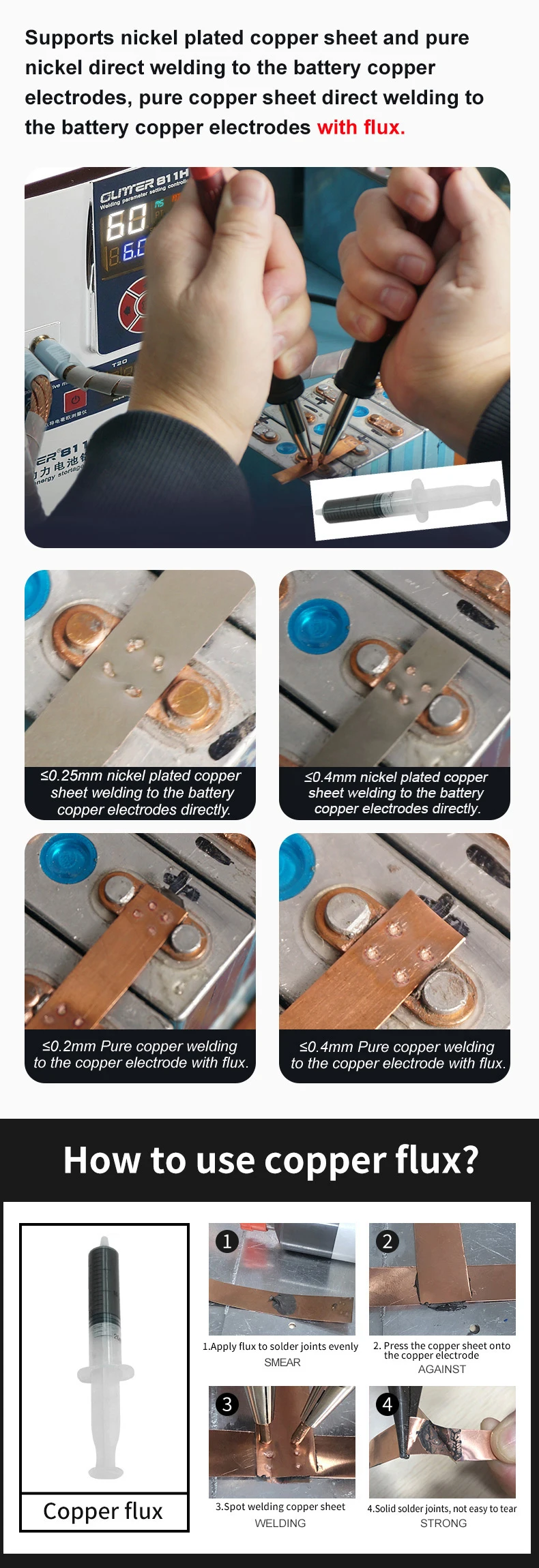

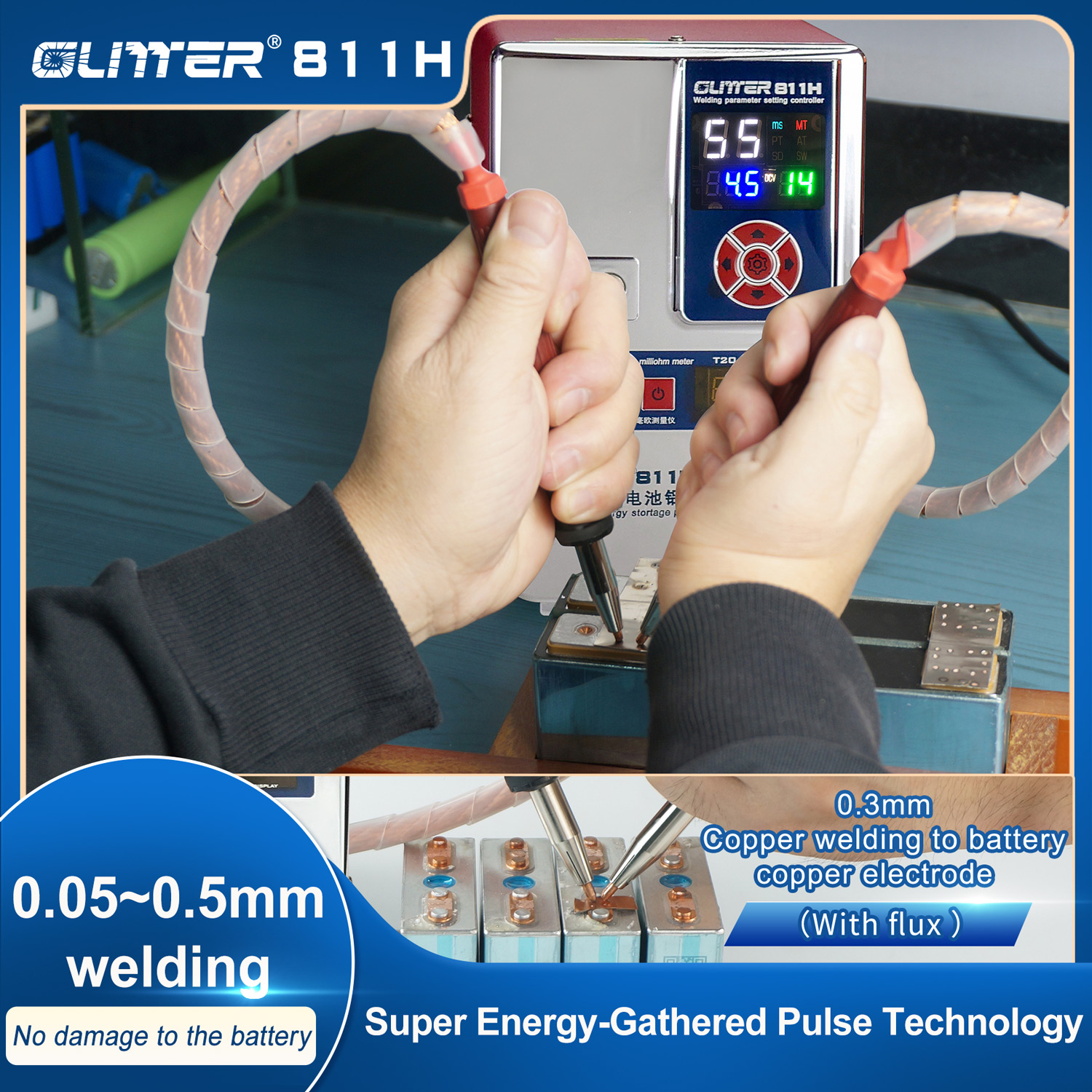

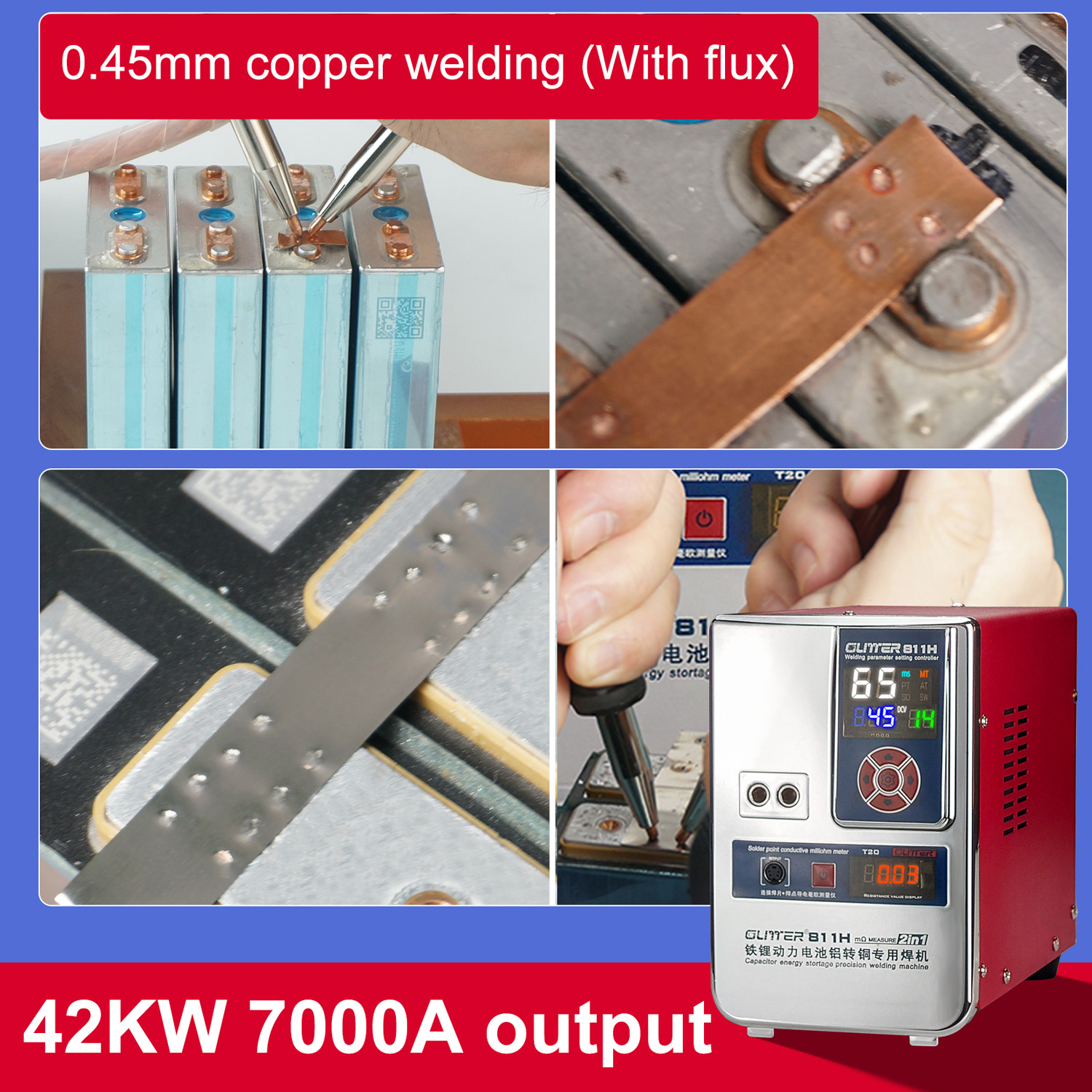

(1) Spot welding of 0.5mm pure copper with copper electrode (with flux)
(2) Aluminum nickel composite sheet: 0.4mm
(3) Pure nickel: 0.7mm
(4) Nickel plating: 0.8mm
Major function
- Spot welding;

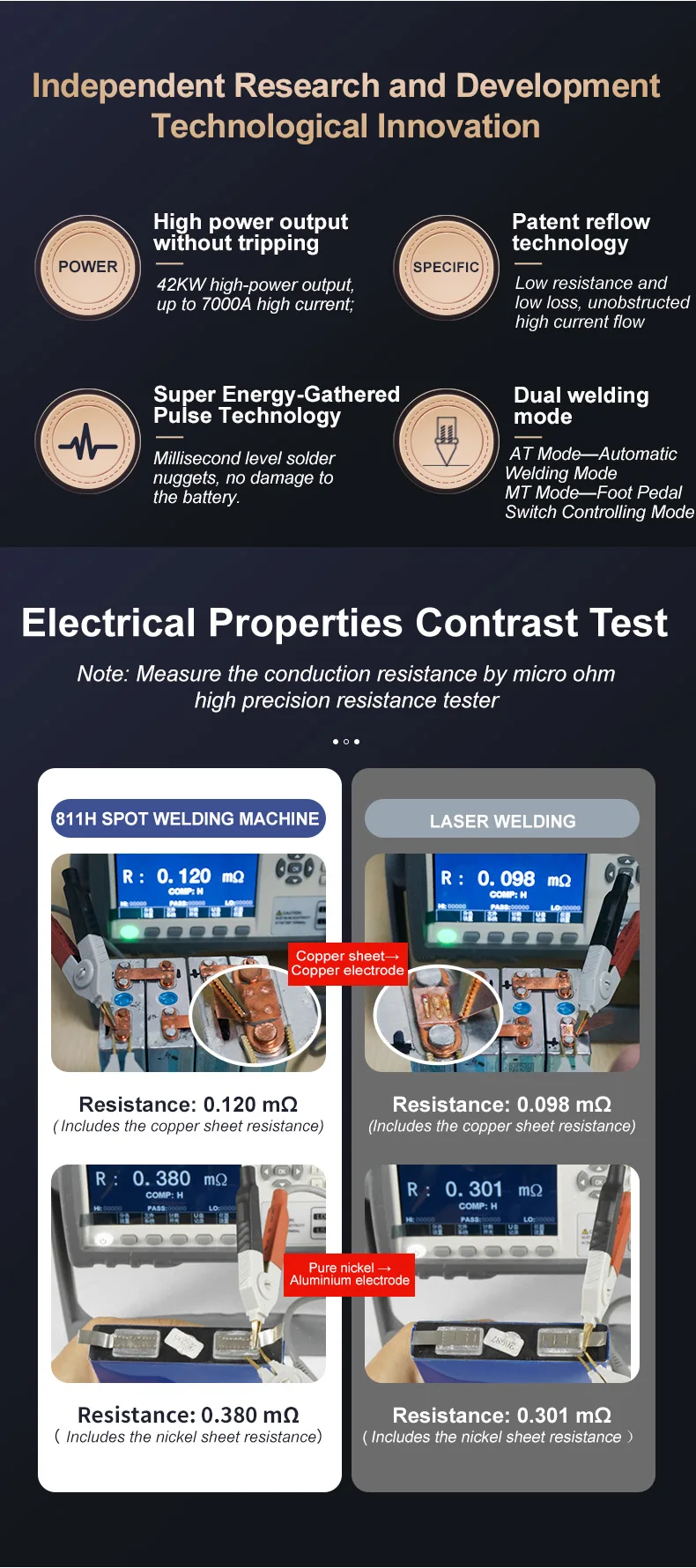

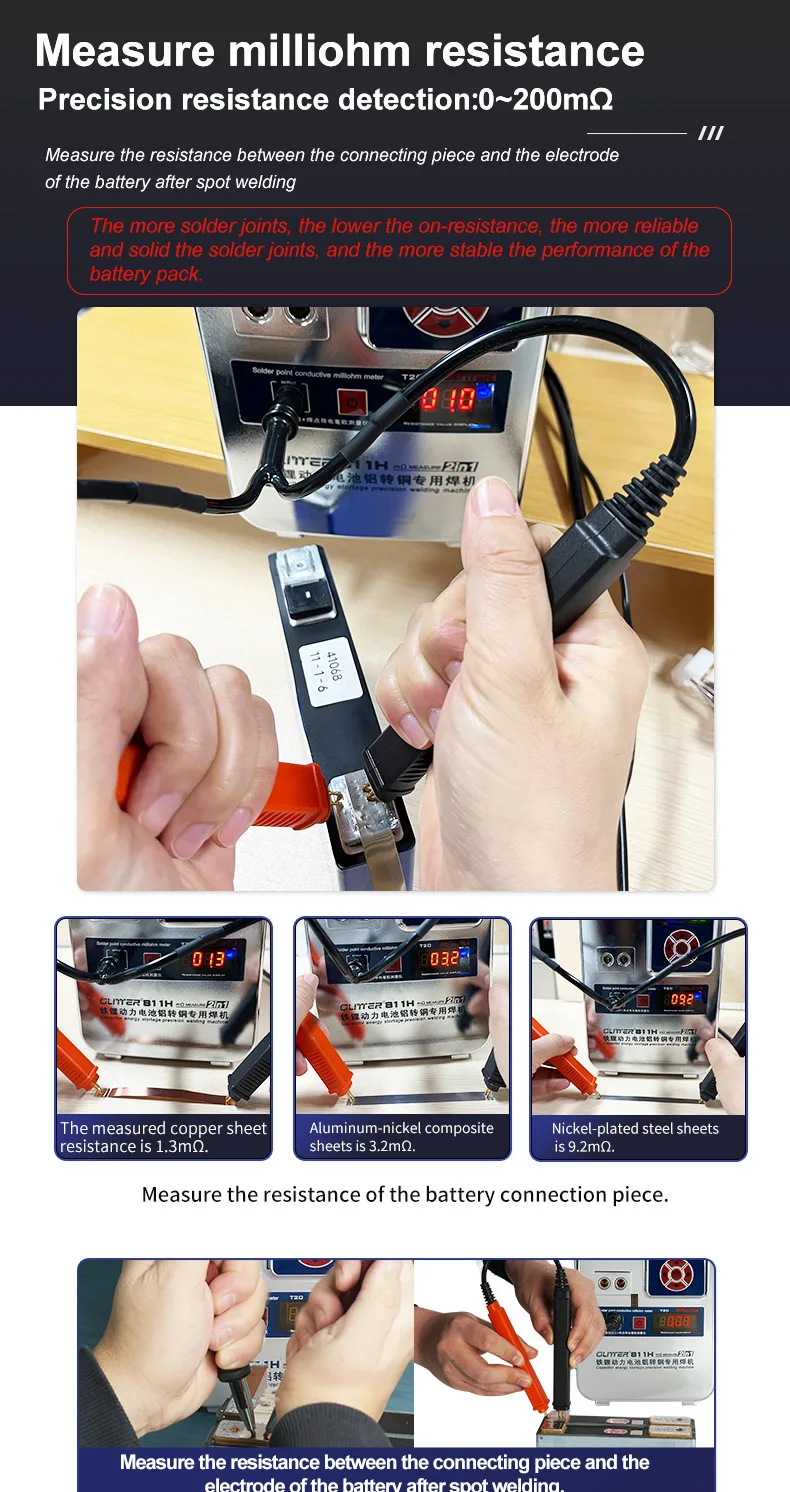

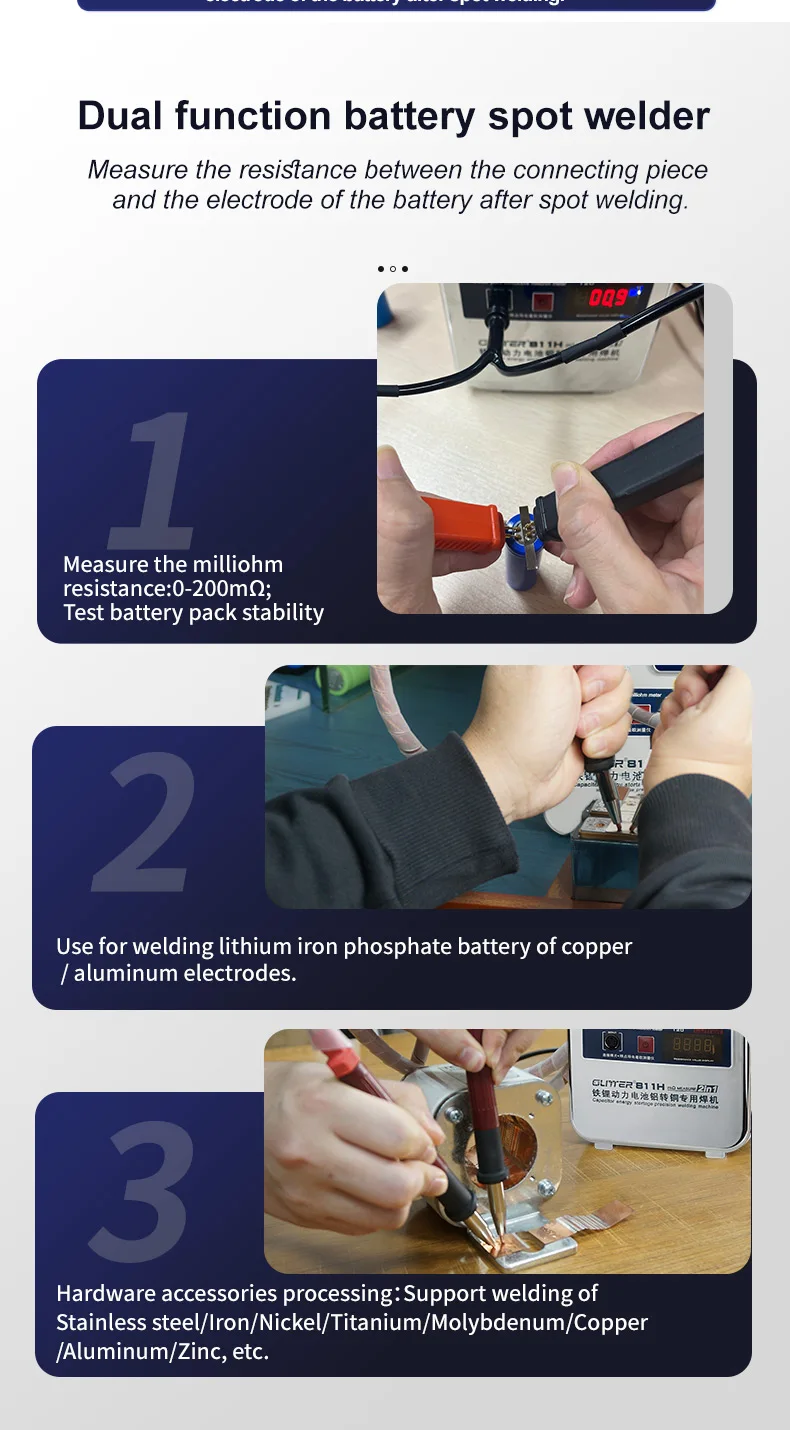

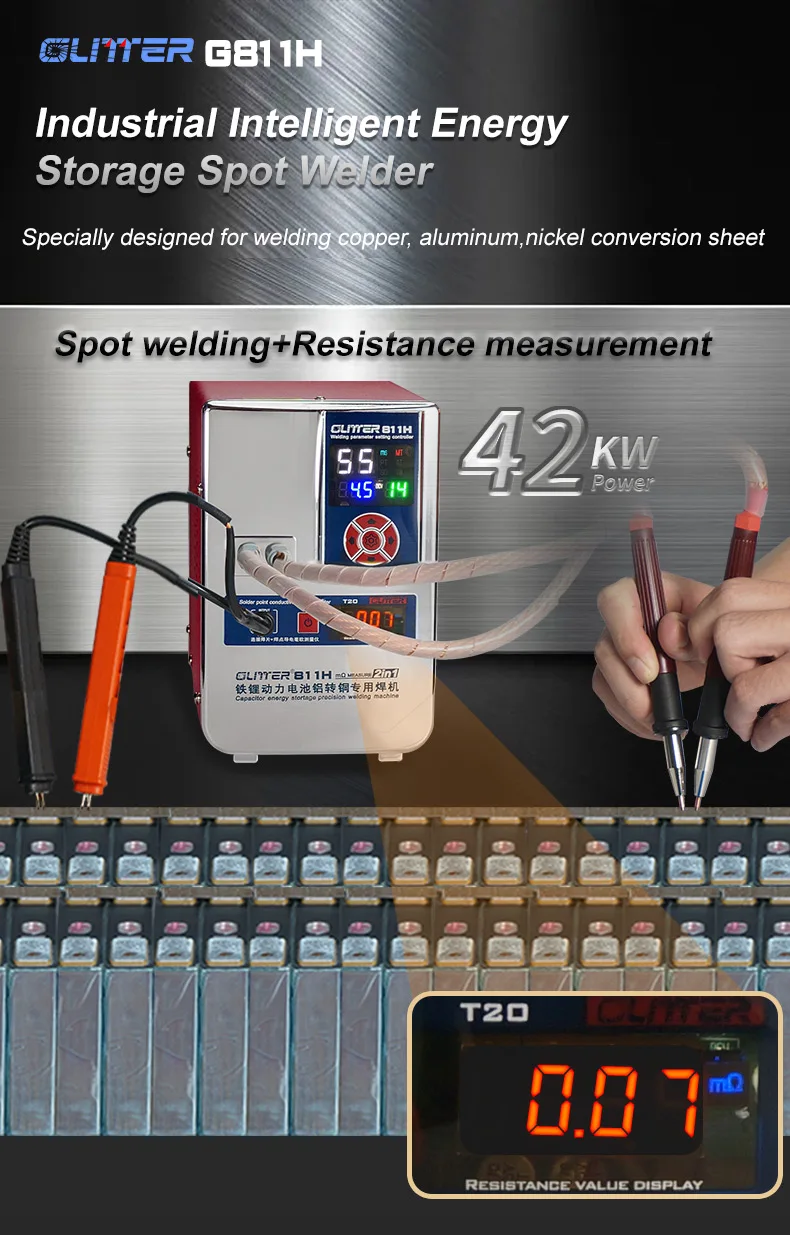

- Battery connector resistance test
Suitable for battery type
- Lithium iron phosphate copper electrode;

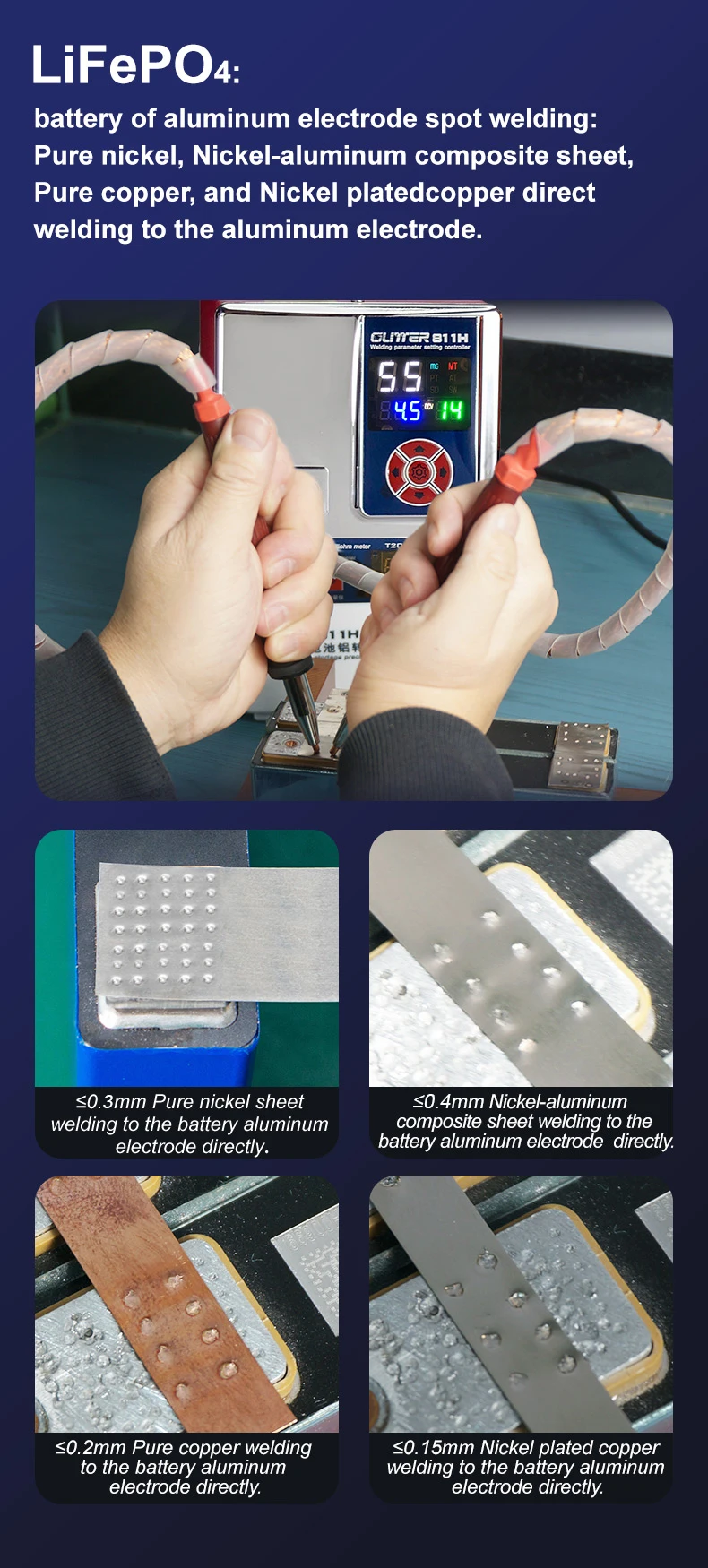

- Lithium iron phosphate battery (0.3mm pure nickel direct spot welding aluminum electrode)
)
)
