1. Adopt infrared weld technology which independent exploration.
2. Use infrared heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco.
3. Easily operate.Just need one day training.Can operation this machine.
4. Don’t need weld tools.This machine can weld all the component of 35×35-50x50mm.
5. This machine has 800W heating system.widely to240x180mm.
6. Infrared heating don’t have sirocco flow. Don’t impact perimeter small component.Can suitable for all of the component,especially Micro BGA component.
7. Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to request; Specially especially suits to the computer north and south bridge.
Specifications:
Work floor size: 360X240mm
Rated voltage and frequency: AC110V/220-230V 60/50Hz
Complete machine power: 1000W
Infra-red lamp body power: 150W
Preheating chassis power: 800W
Infra-red lamp body heating size: Φ70mm(50x50mm)
Preheating chassis preheating size: 240x180mm
Infra-red lamp body temperature adjustable: 200°C-350°C
Preheating chassis temperature adjustable: 60°C-200°C

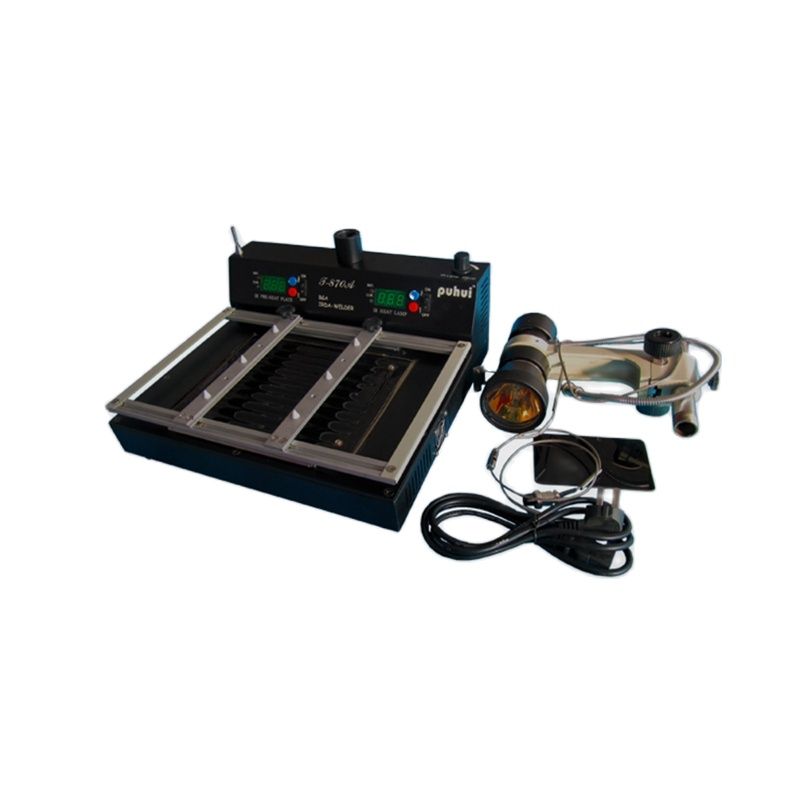

Packing List:

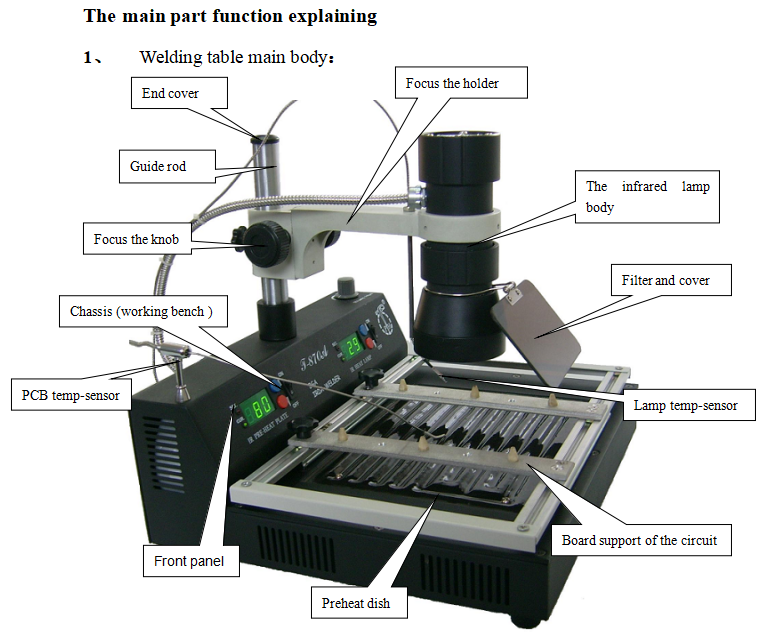

1 x T-870A Welding table main body
1 x Infra-red lamp body
1 x Temperature sensor

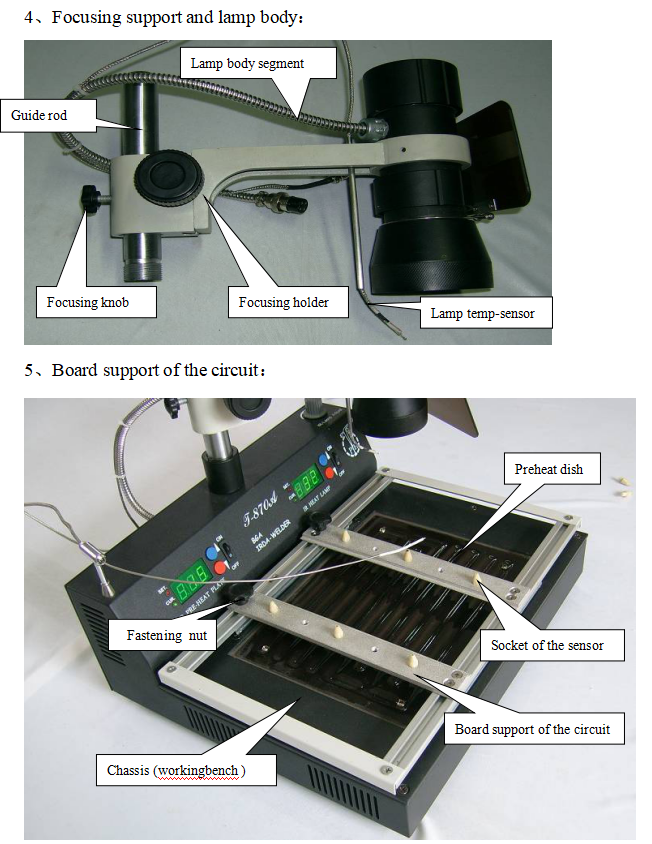

1 x Board support of the circuit
1 x Power Cable (110VAC or 200VAC)
1 x 5mm Fuse, 10A 250VAC(Spare)
1 x CD User Manual w/Vide
