Parameters
Model GLITTER 801M
Voltage Output 5.0~5.8V(Max.)
Voltage InputAC 100-240V 50/60HZ
Welding Energy116J(Max.)
Pulse Power 11.6KW(Max.)

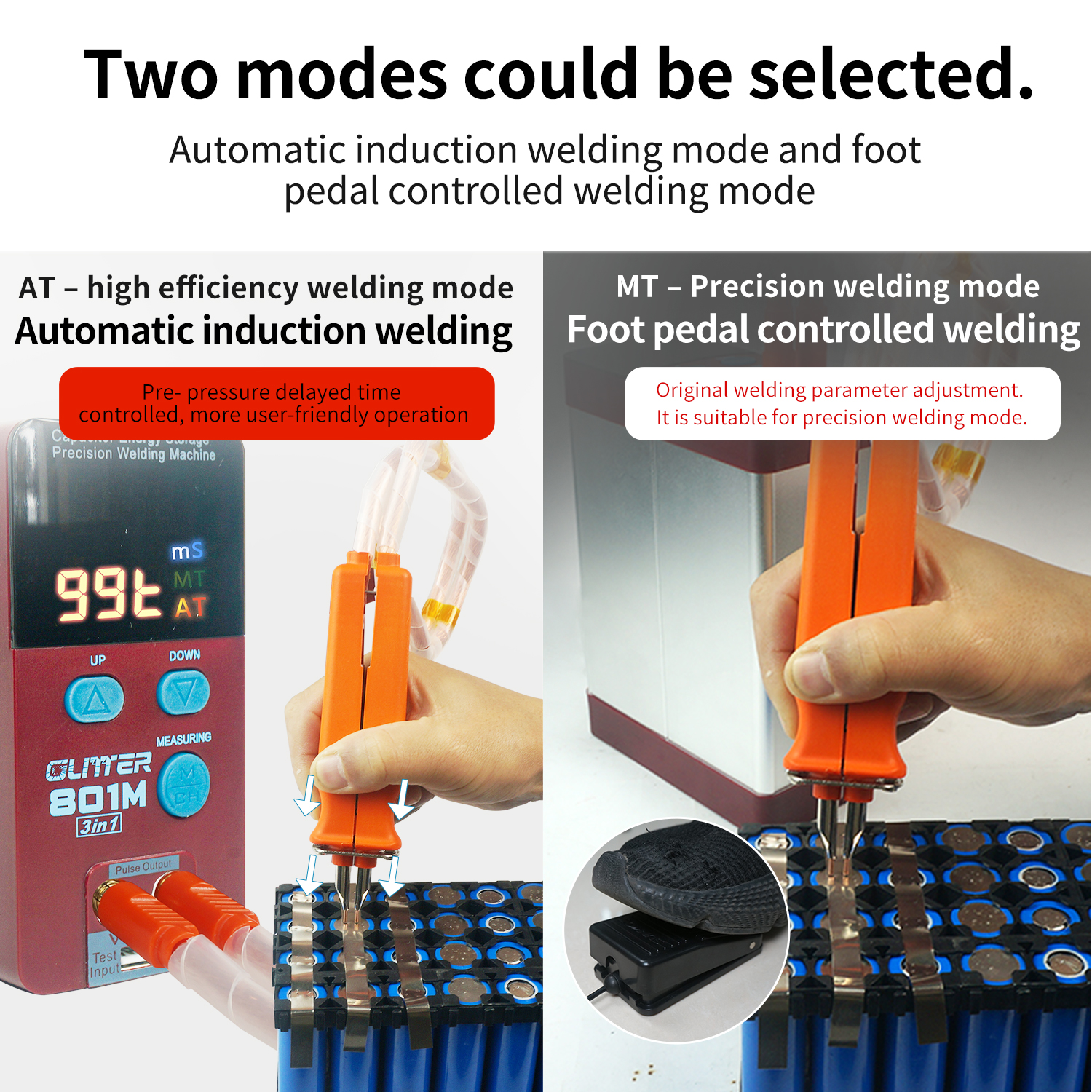

Trigger ModeAutomatic welding/Foot pedalcontrol
Energy Grade0-99T

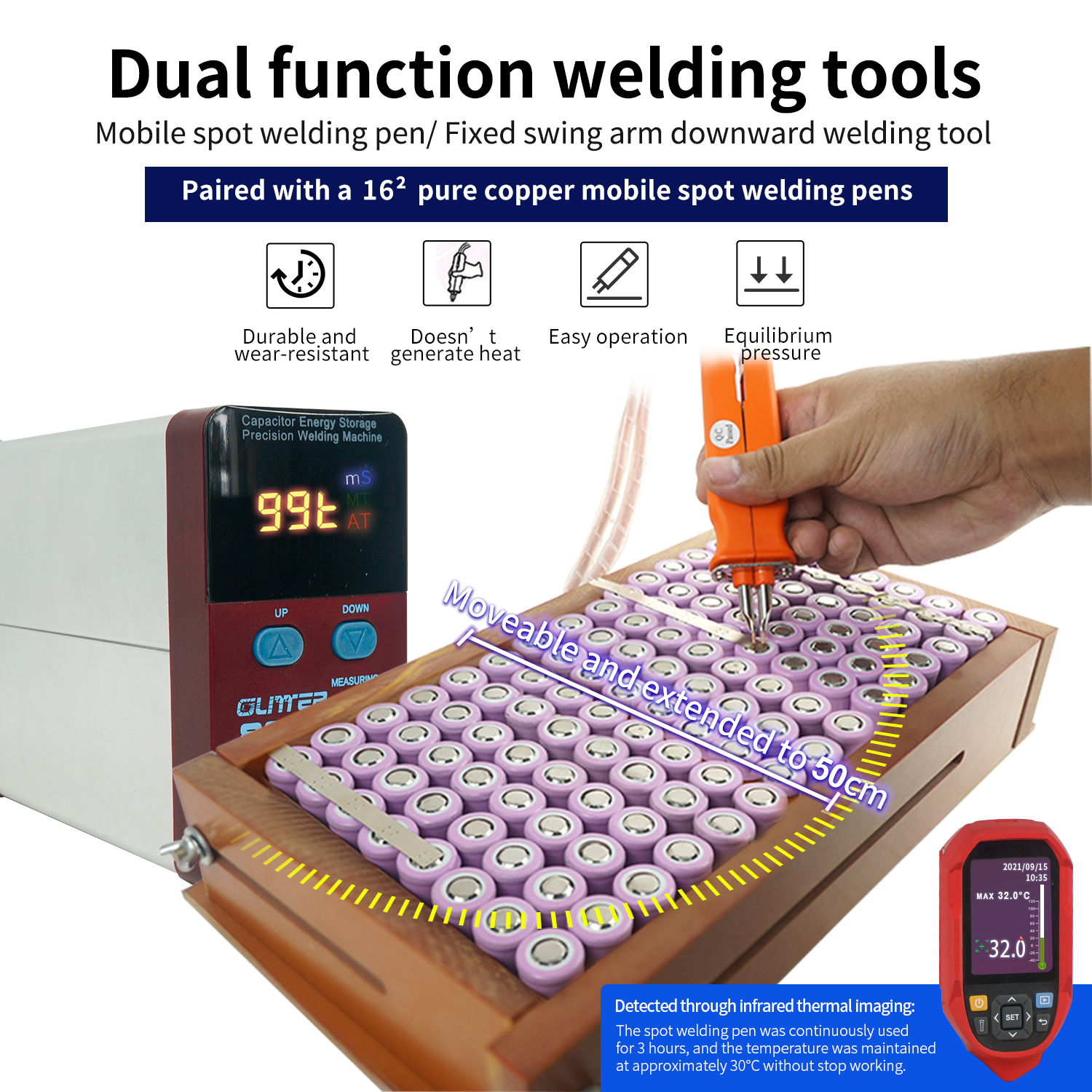

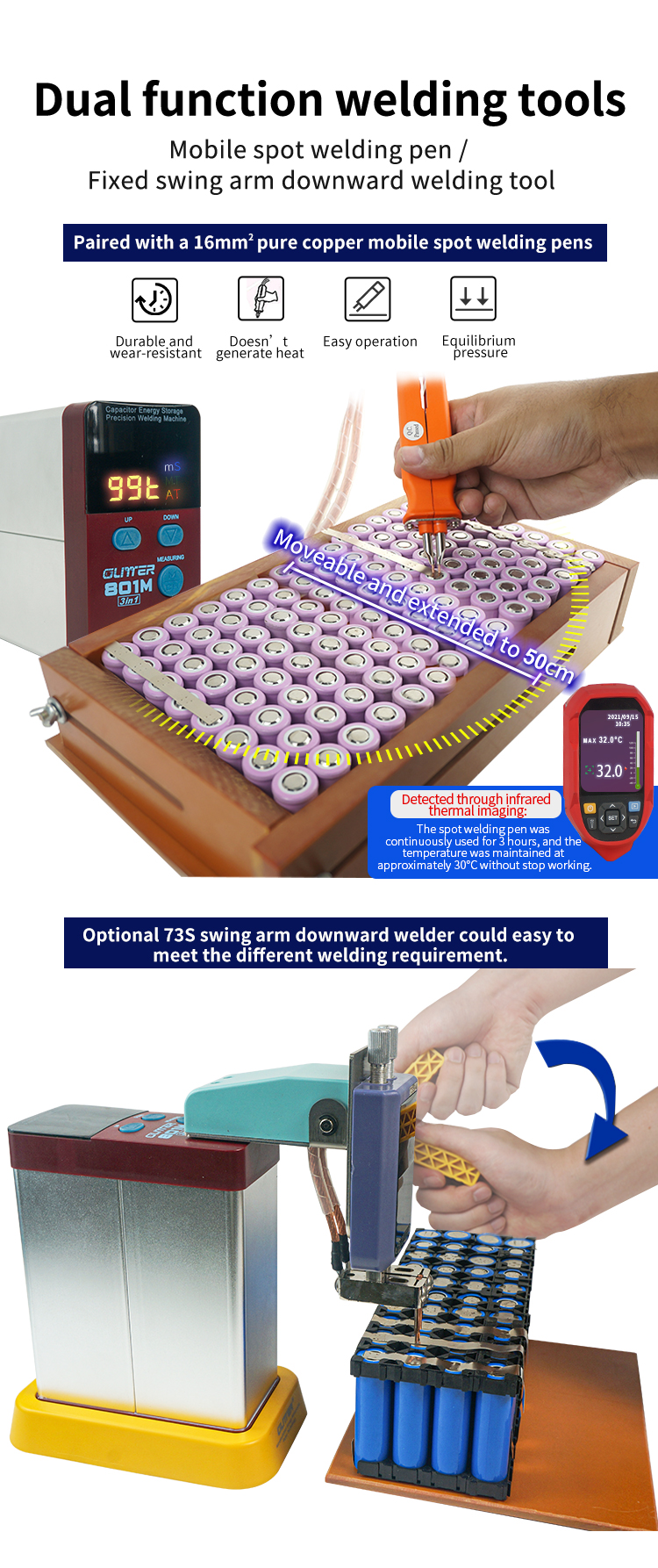

Welding ModePush downspot welding/Mobile pen spot welding
pluse time0~10mS
Preload Delay200~500mS
Adapter Parameter15V2A~3A(Max.)
Charging Time30~40(min)
DC voltage measure:0~42V

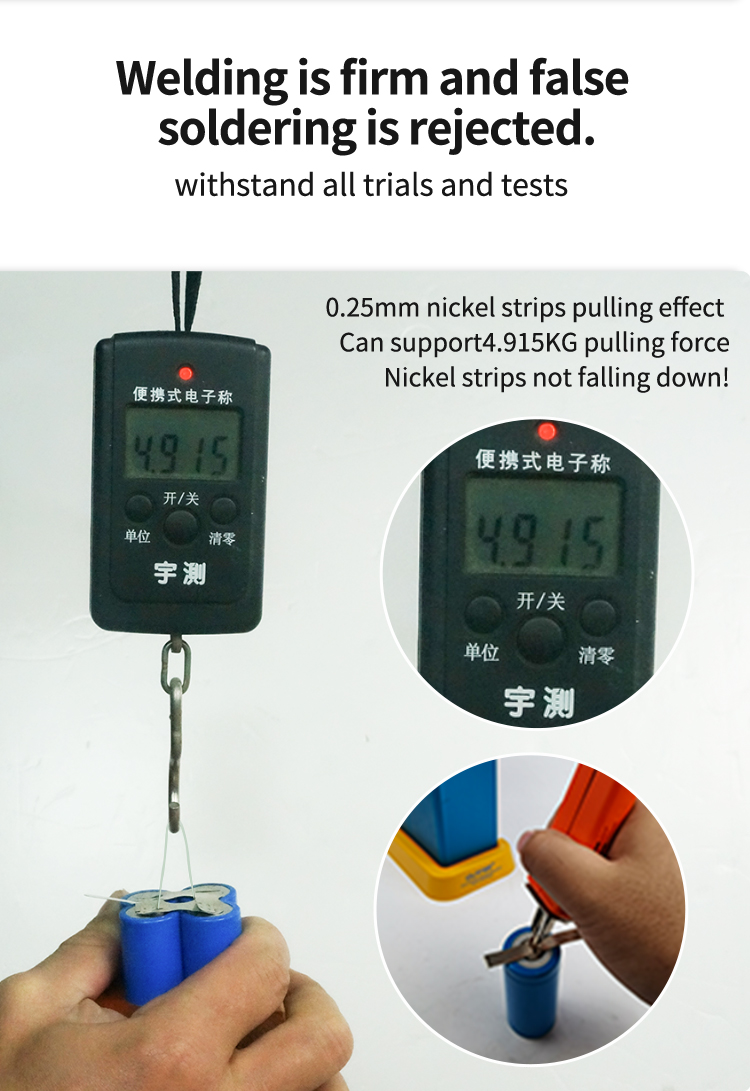

Welding thickness:0.05~0.2mm(Nickelplate)
Capacity measure:0~9.999AH
Charge current:0~2A
Charge voltage:4.2~4.3V

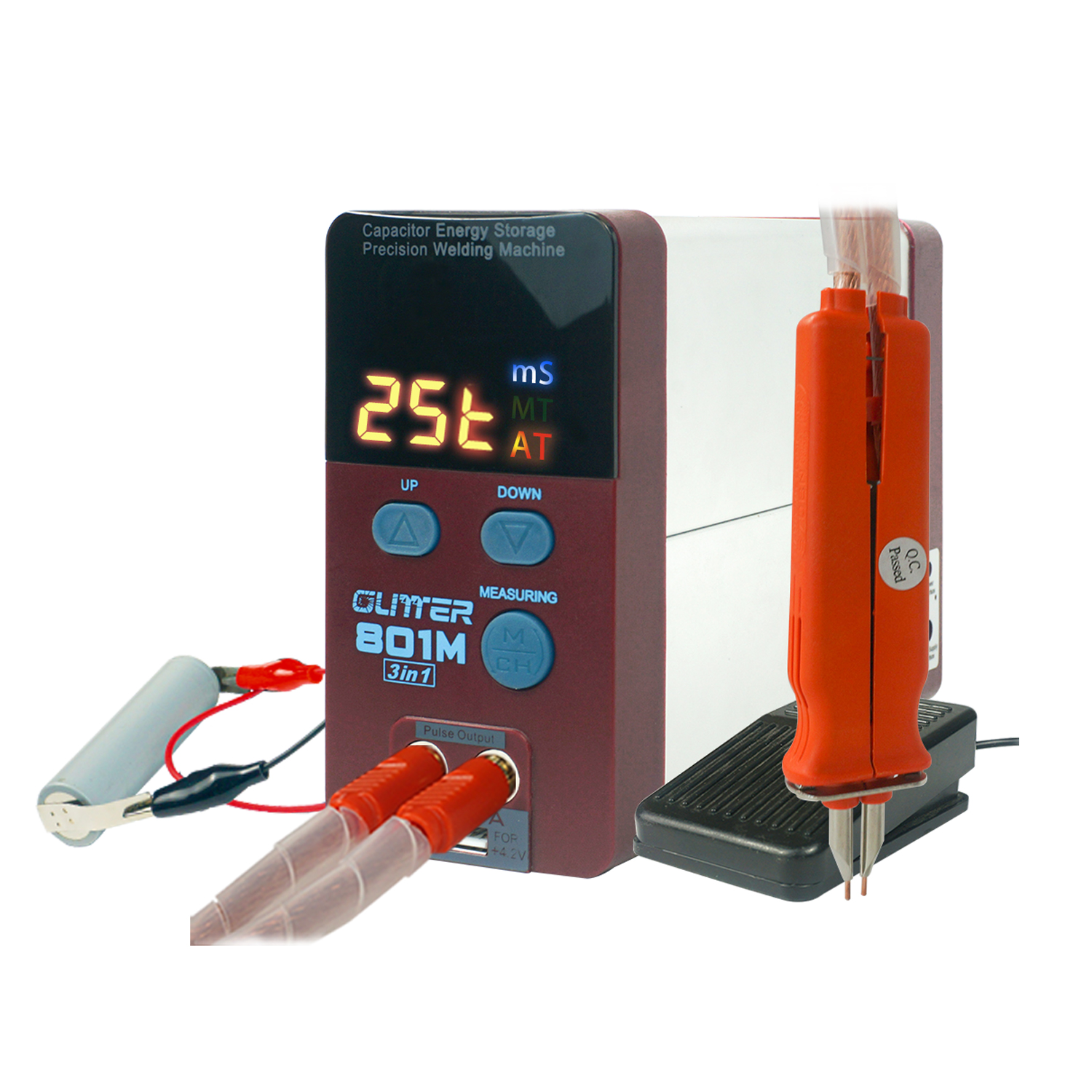

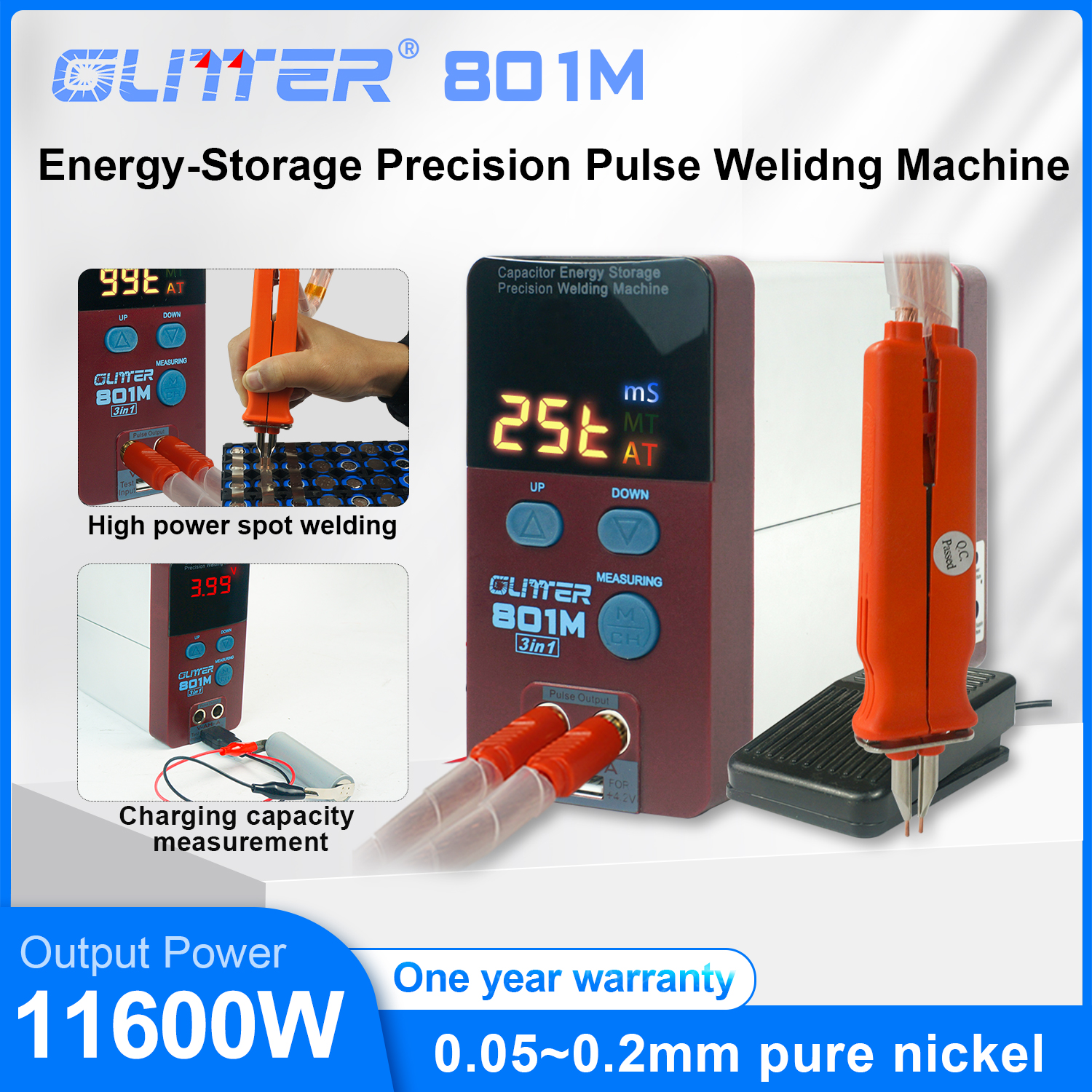

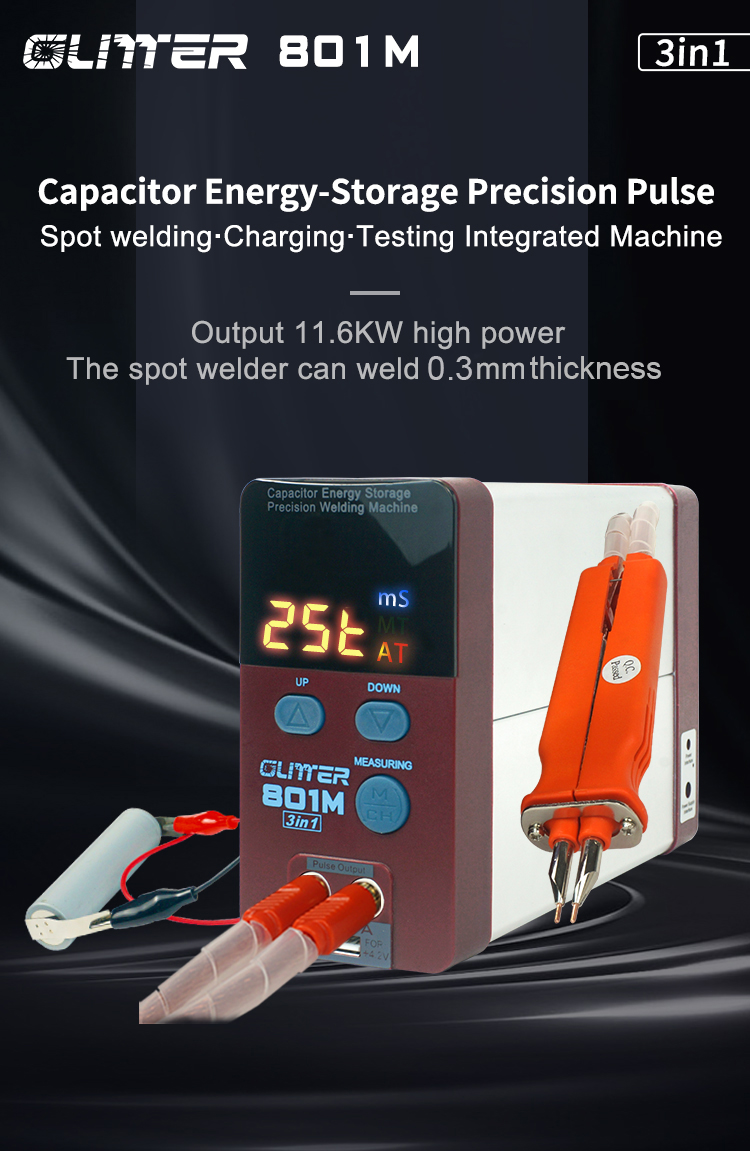

801M Precision Pulse Spot Welder·Charger·Measure 3 In 1

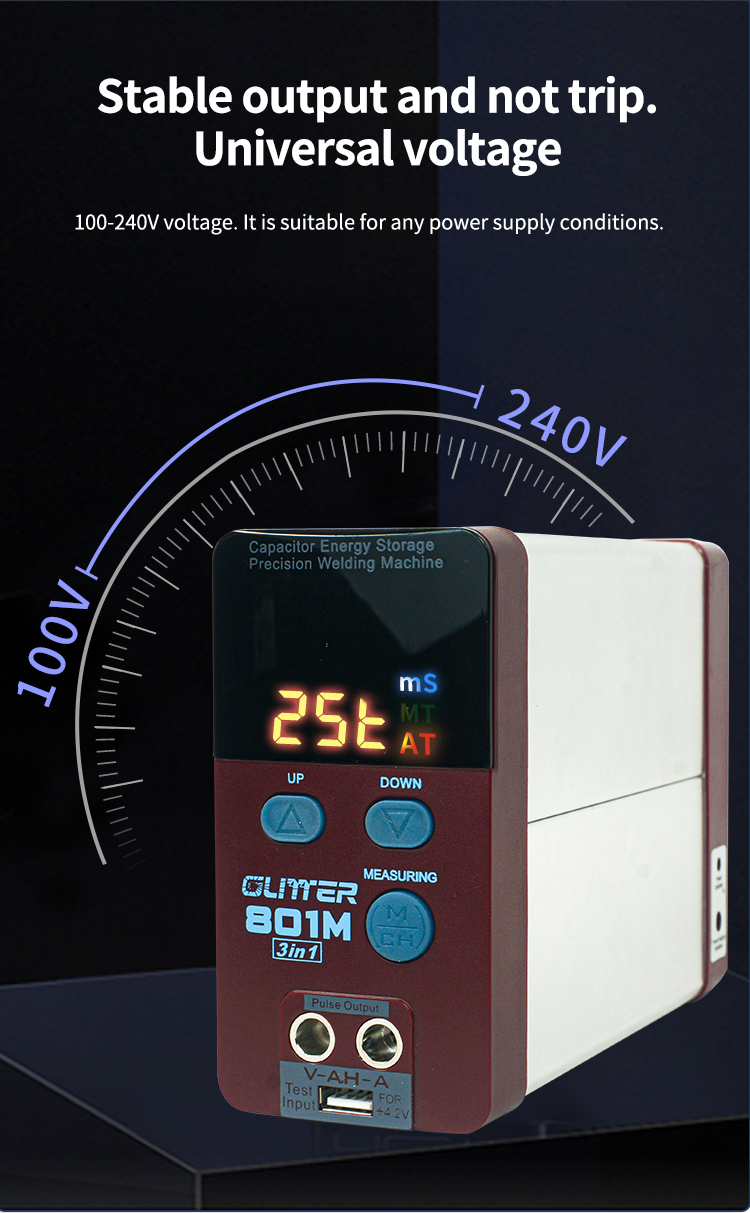

1.This spotwelder will not cause interference to the circuit system or cause tripping.
2.The new-designed capacitor energy storage welder uses the latest energy-gathered pulse technology, is has great welding power,the soldered dot is uniform and beautiful, no blackening.

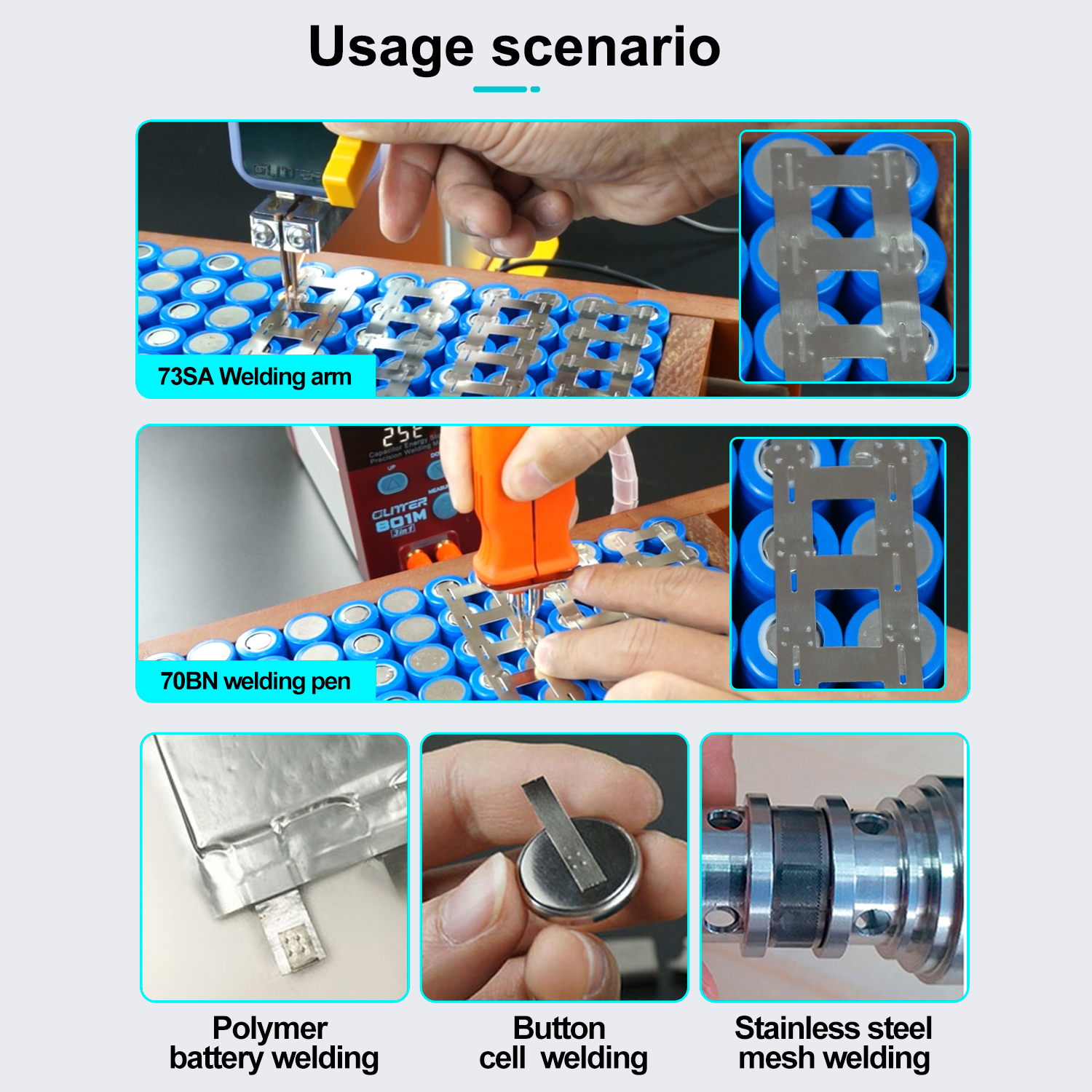

3.The maximum output of the 801Mwelder is 11.6 kilowatts. It can be used for large batteries welding.

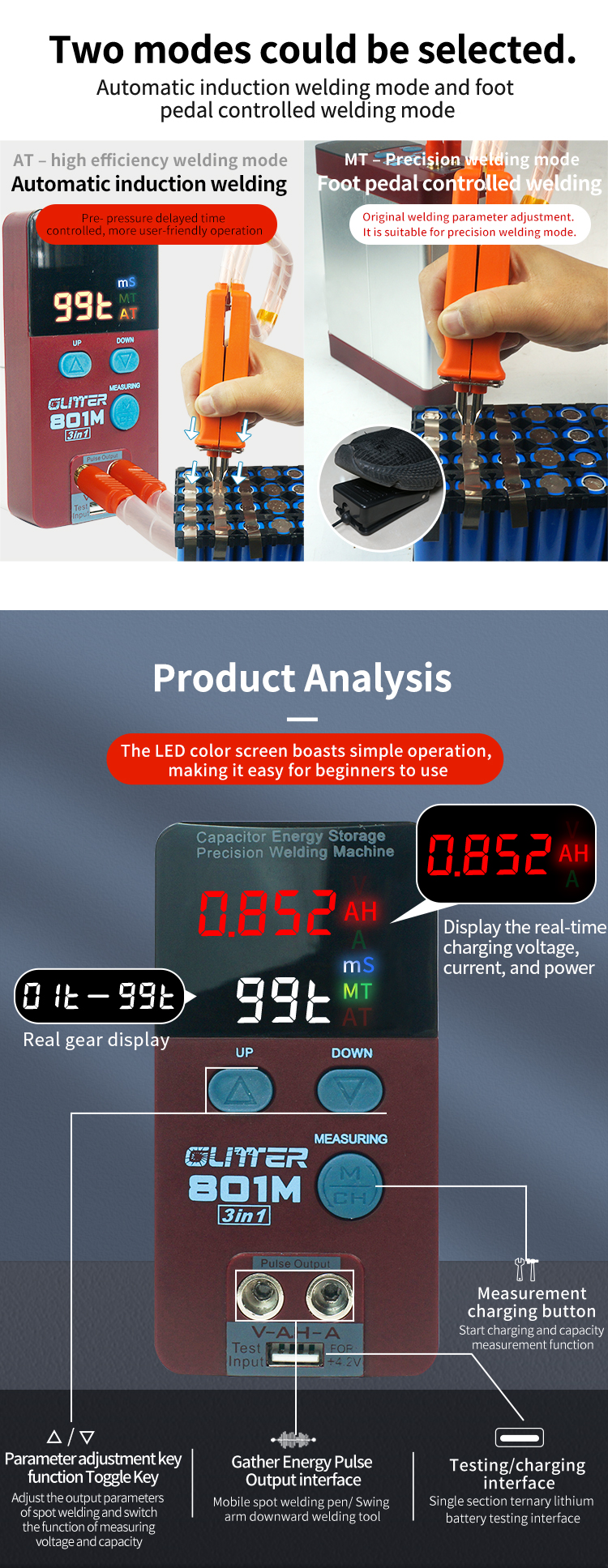

4.The new operation interface allows you to adjust the energy output according to an object’s thickness.

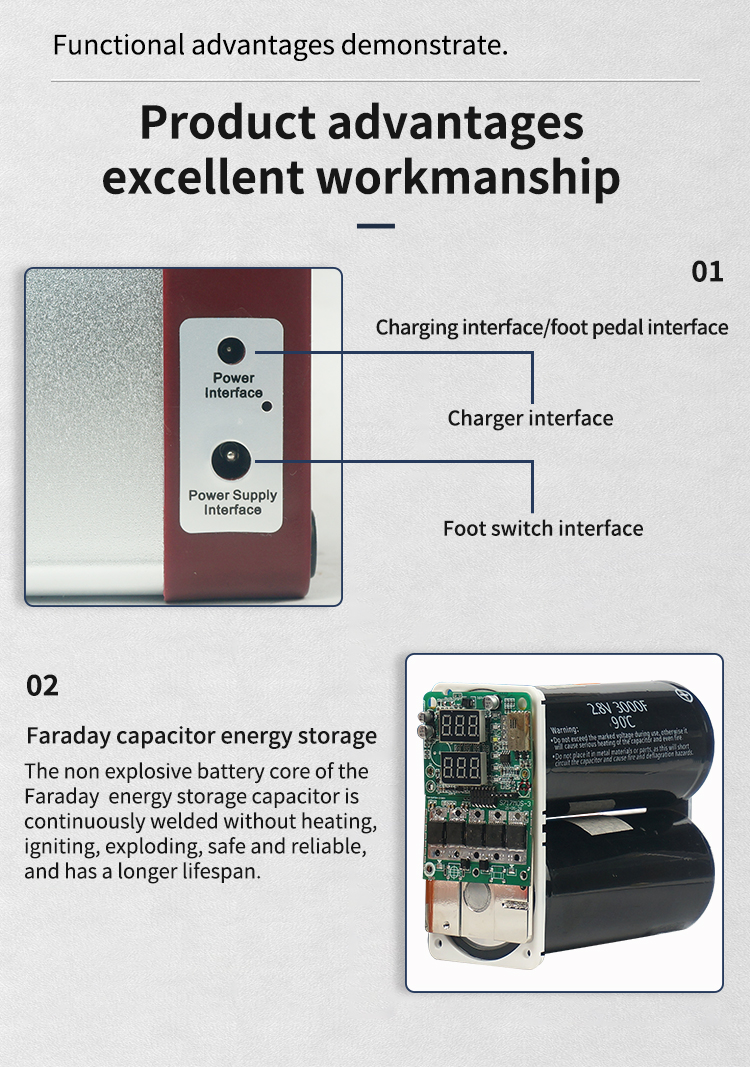

5.The core components of the welder are two super capacitors with long working life and large capacity, the machine can be used for long time welding work.

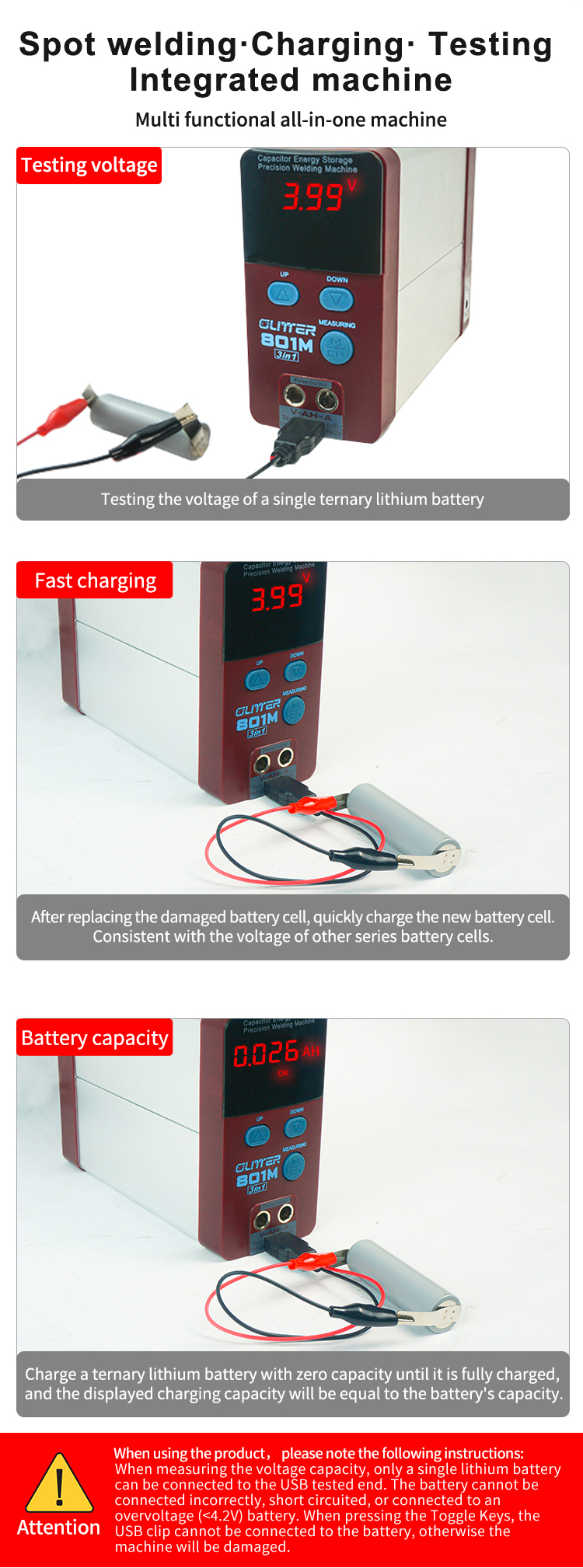

6.New enhancement to measure the voltage of single-cell lithium ternary battery.

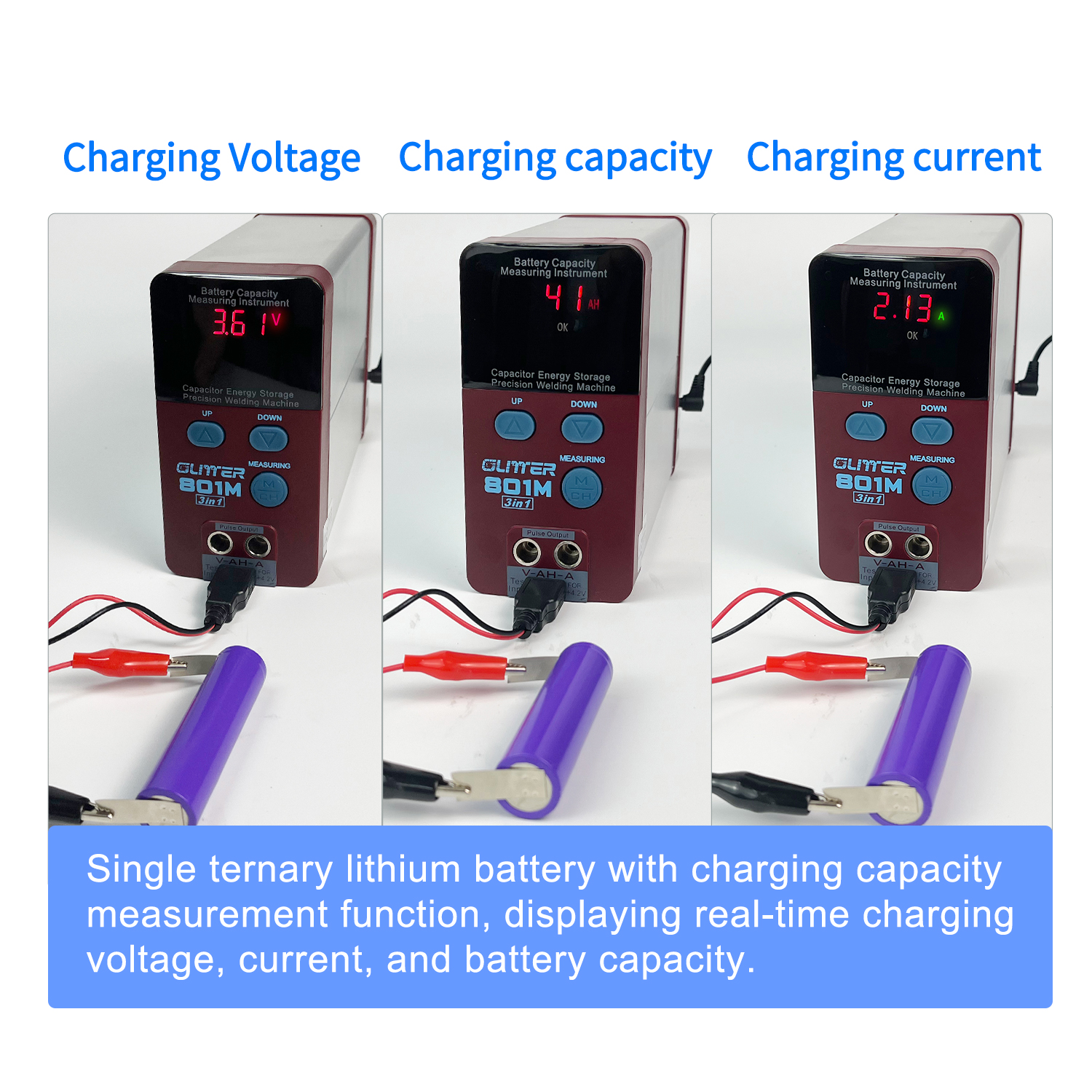

7.New enhancement to measure the battery capacity and charge of single-cell,display the charge voltage,current and capacity.
8.The compact aluminum alloy shell can effectively dissipate heat.
